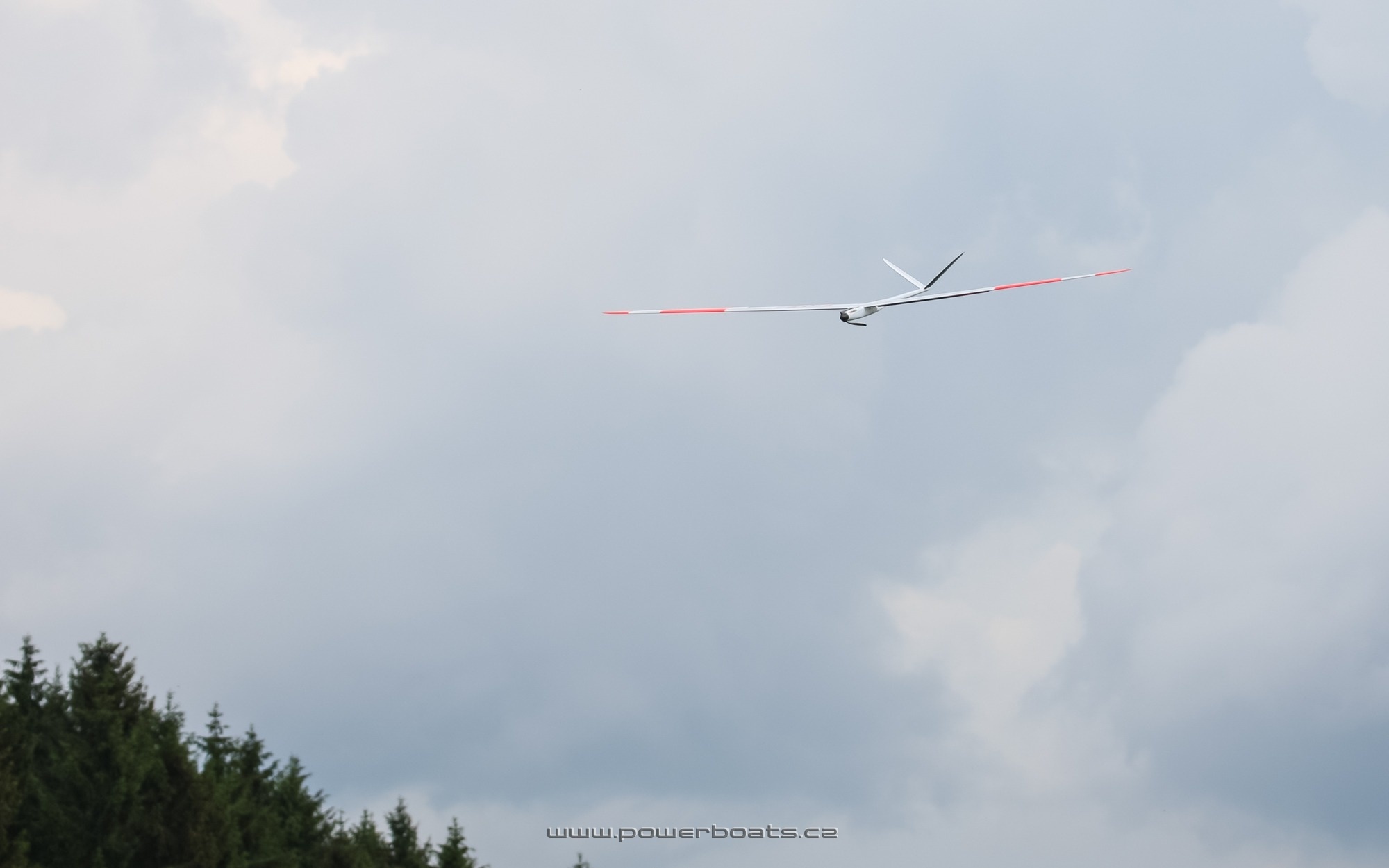

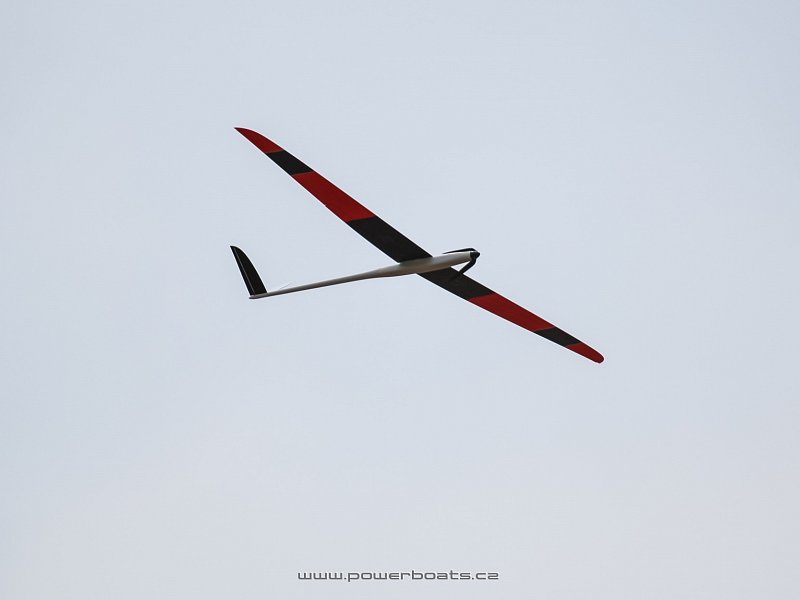

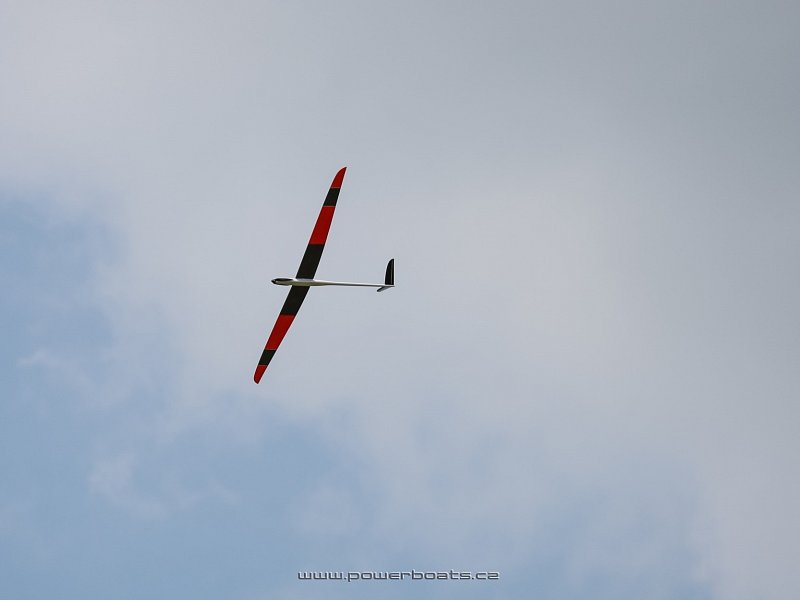

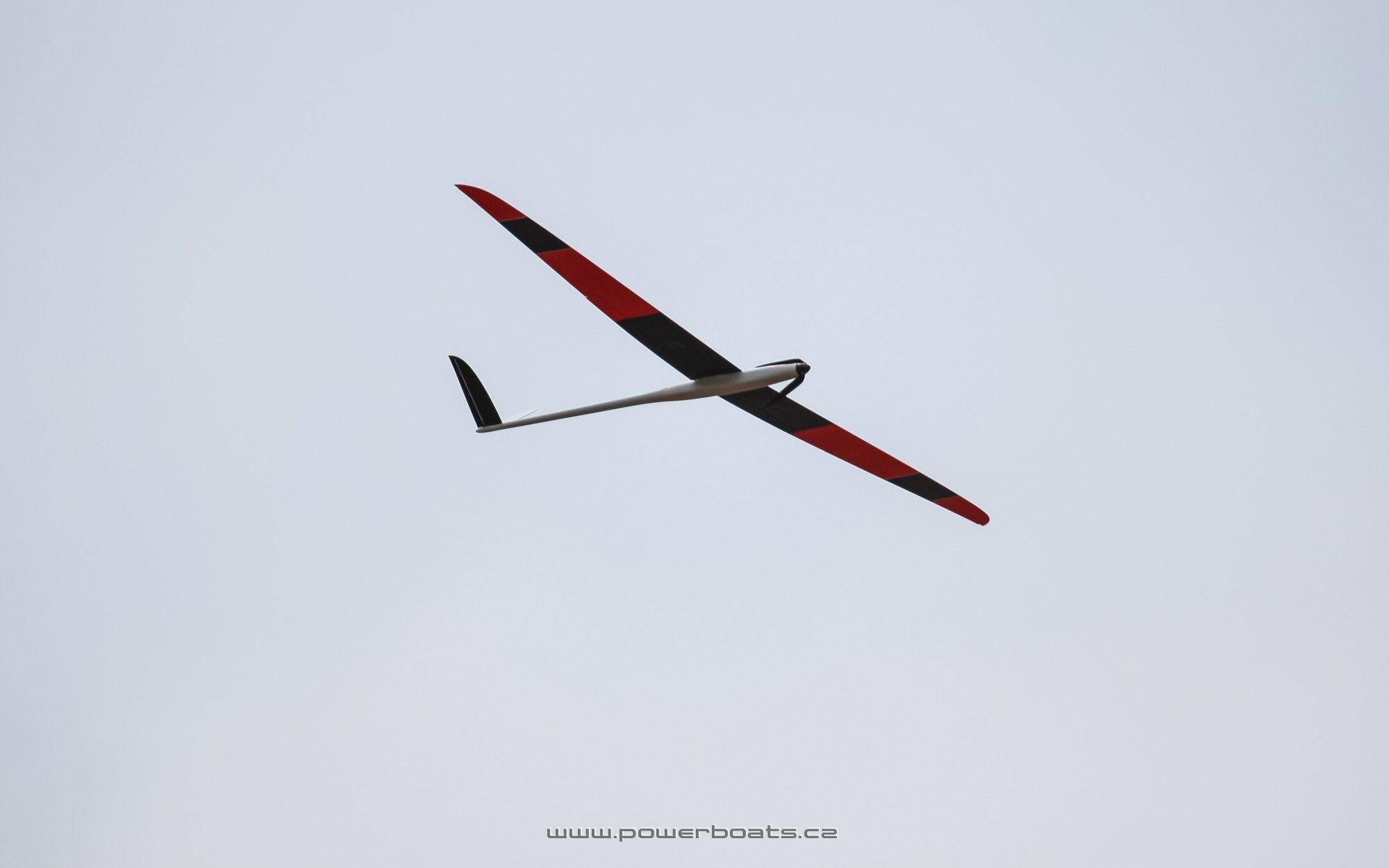

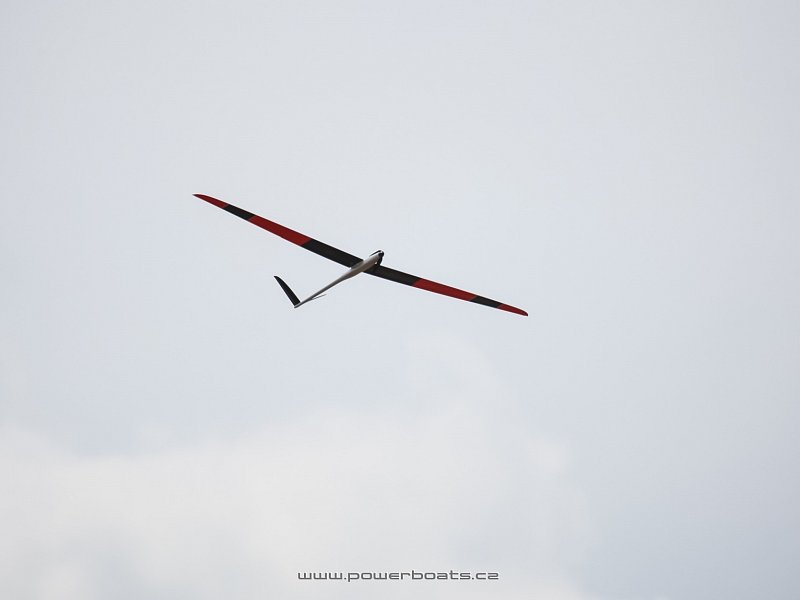

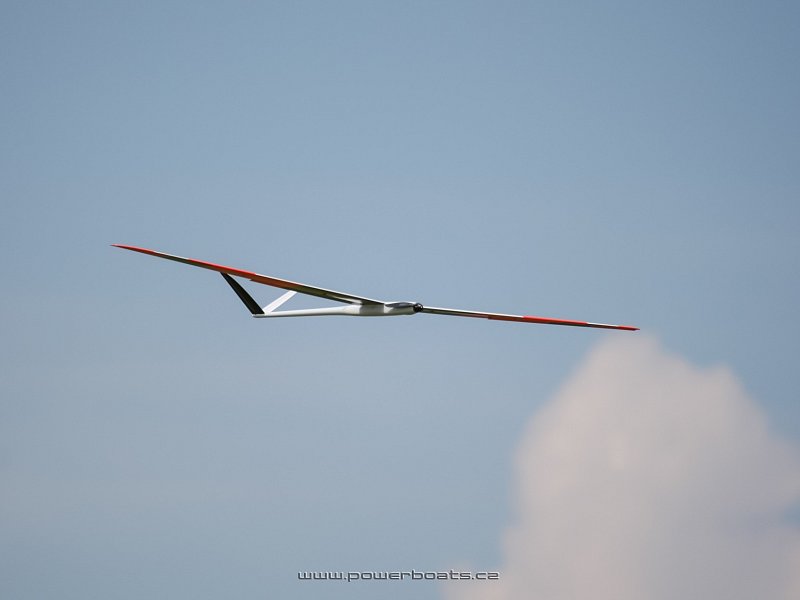

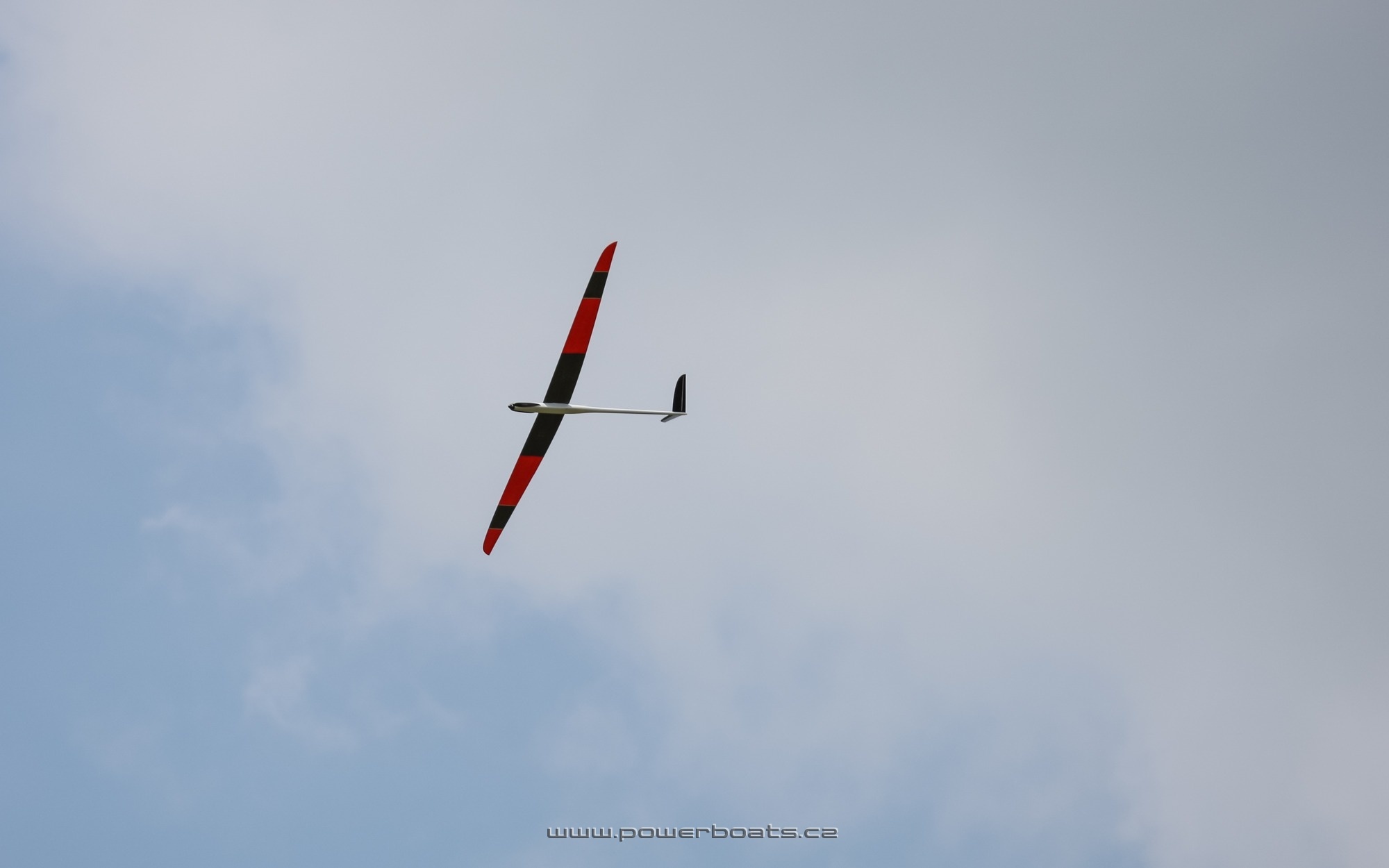

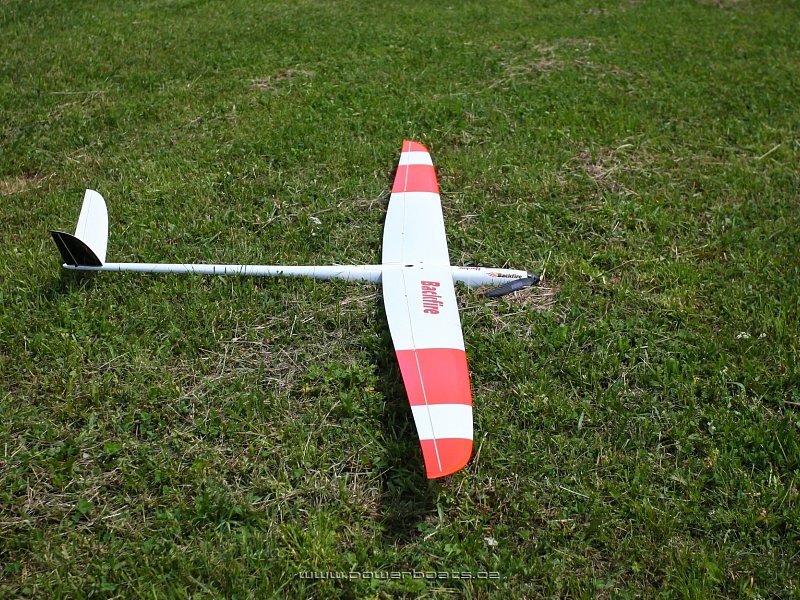

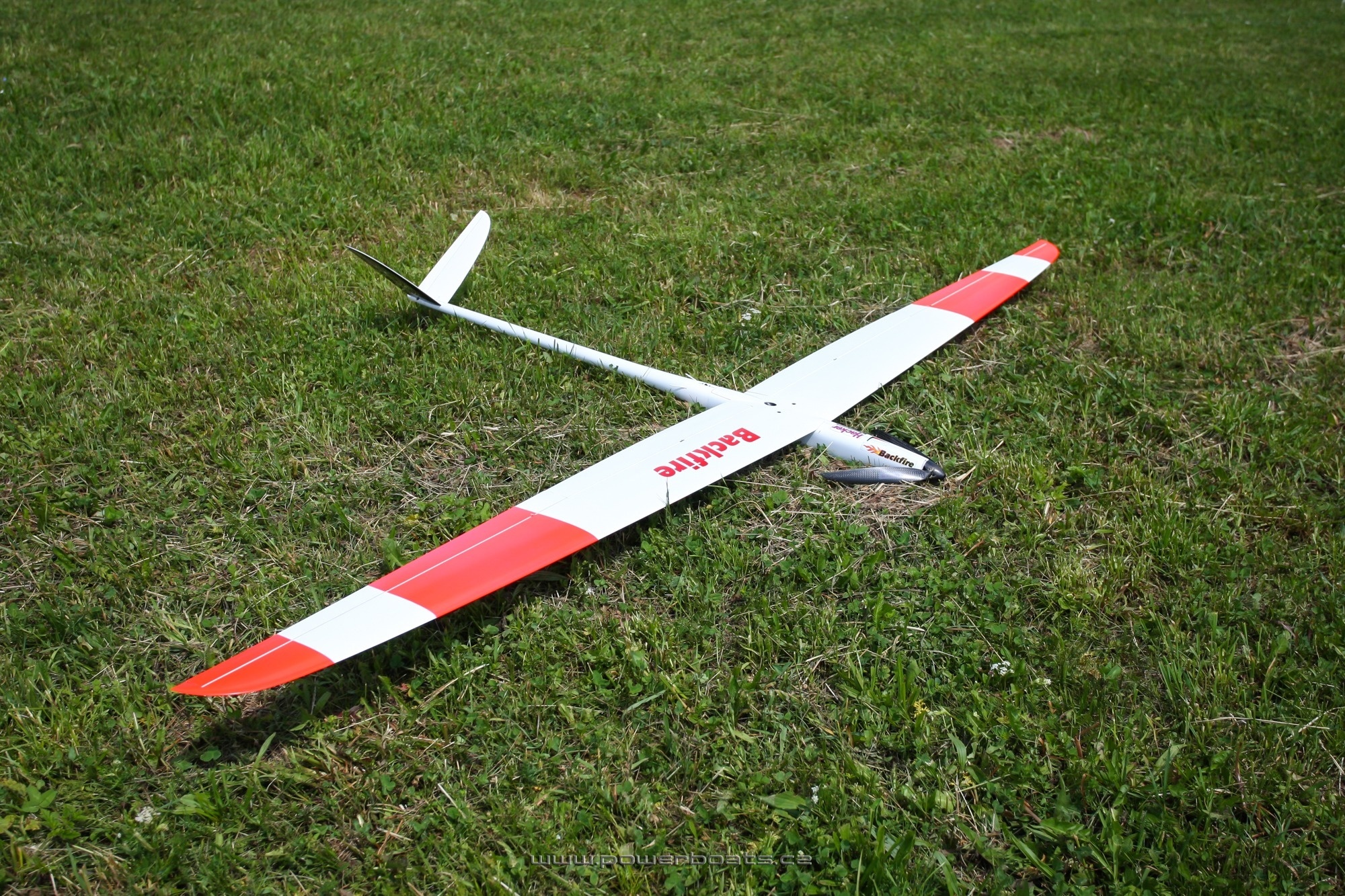

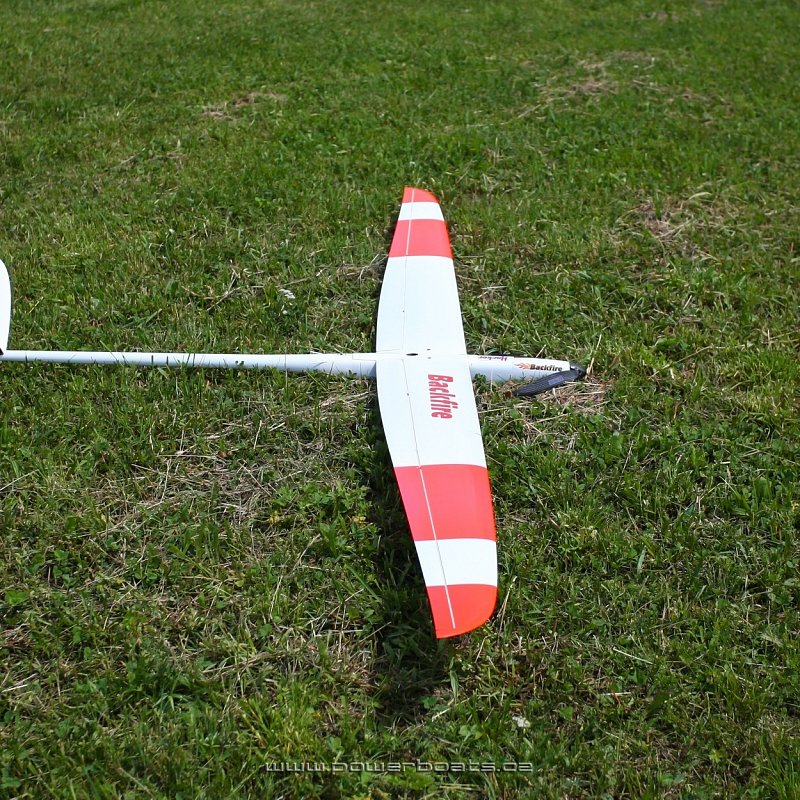

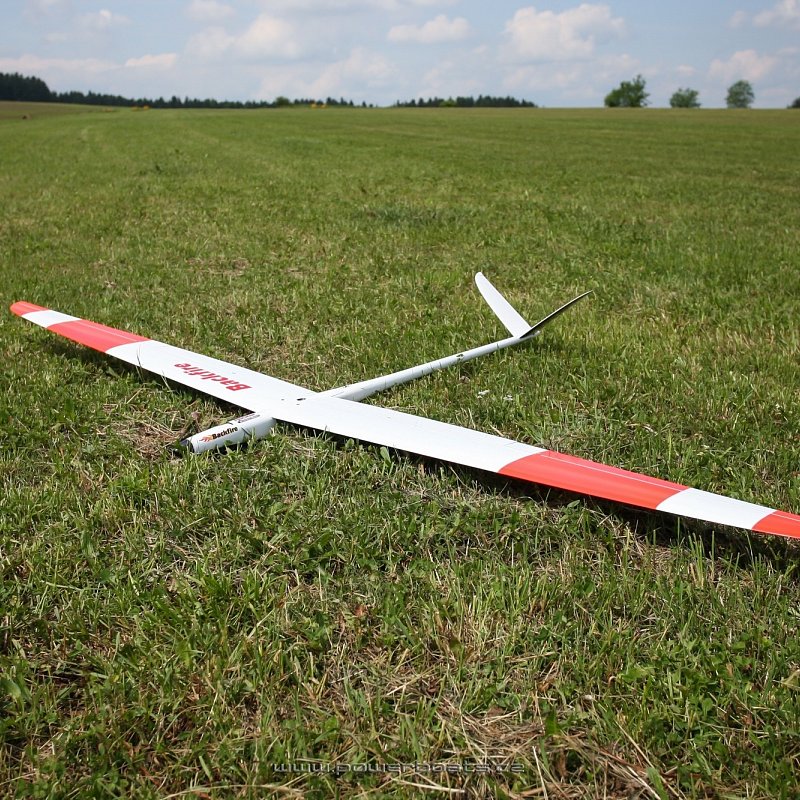

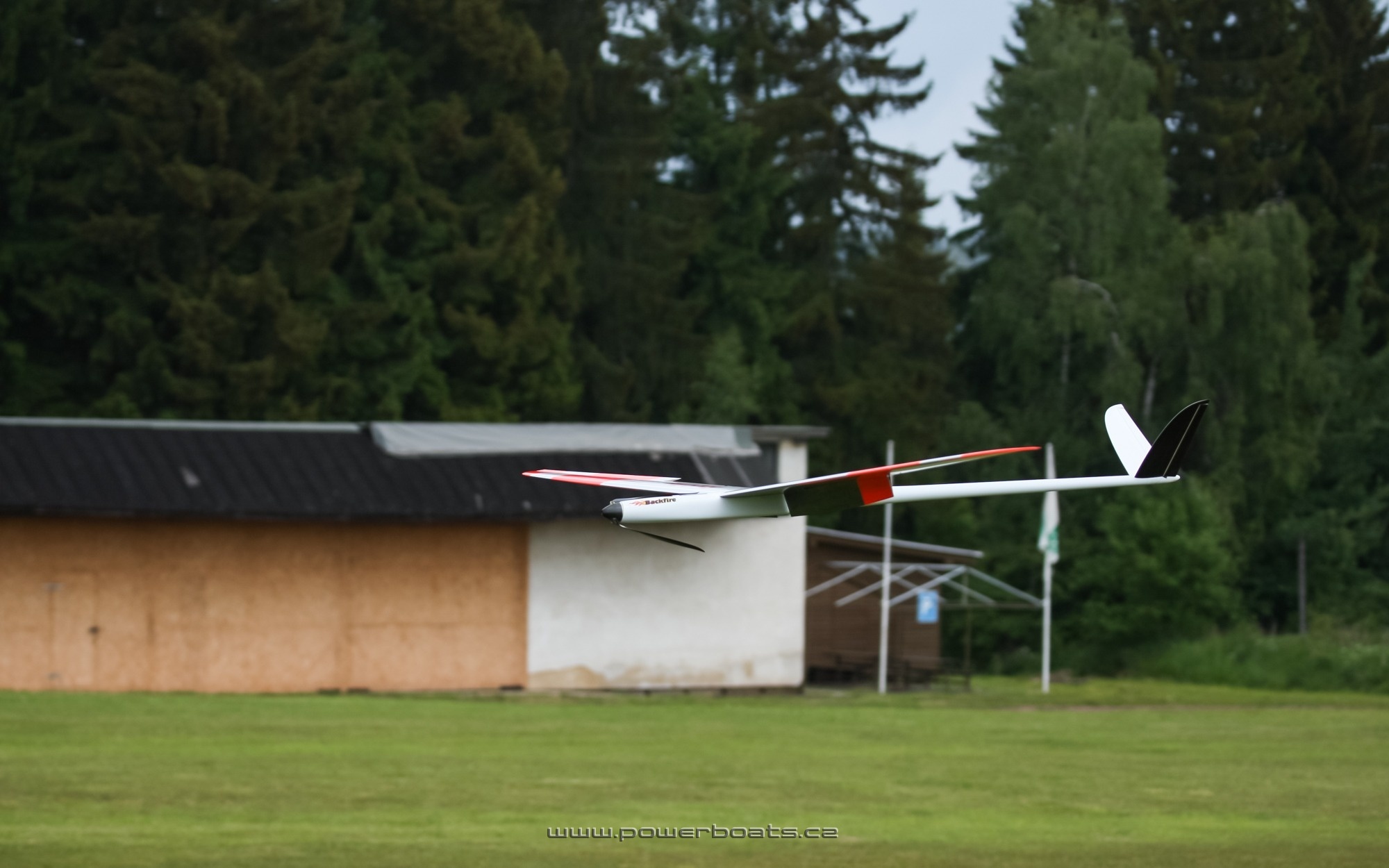

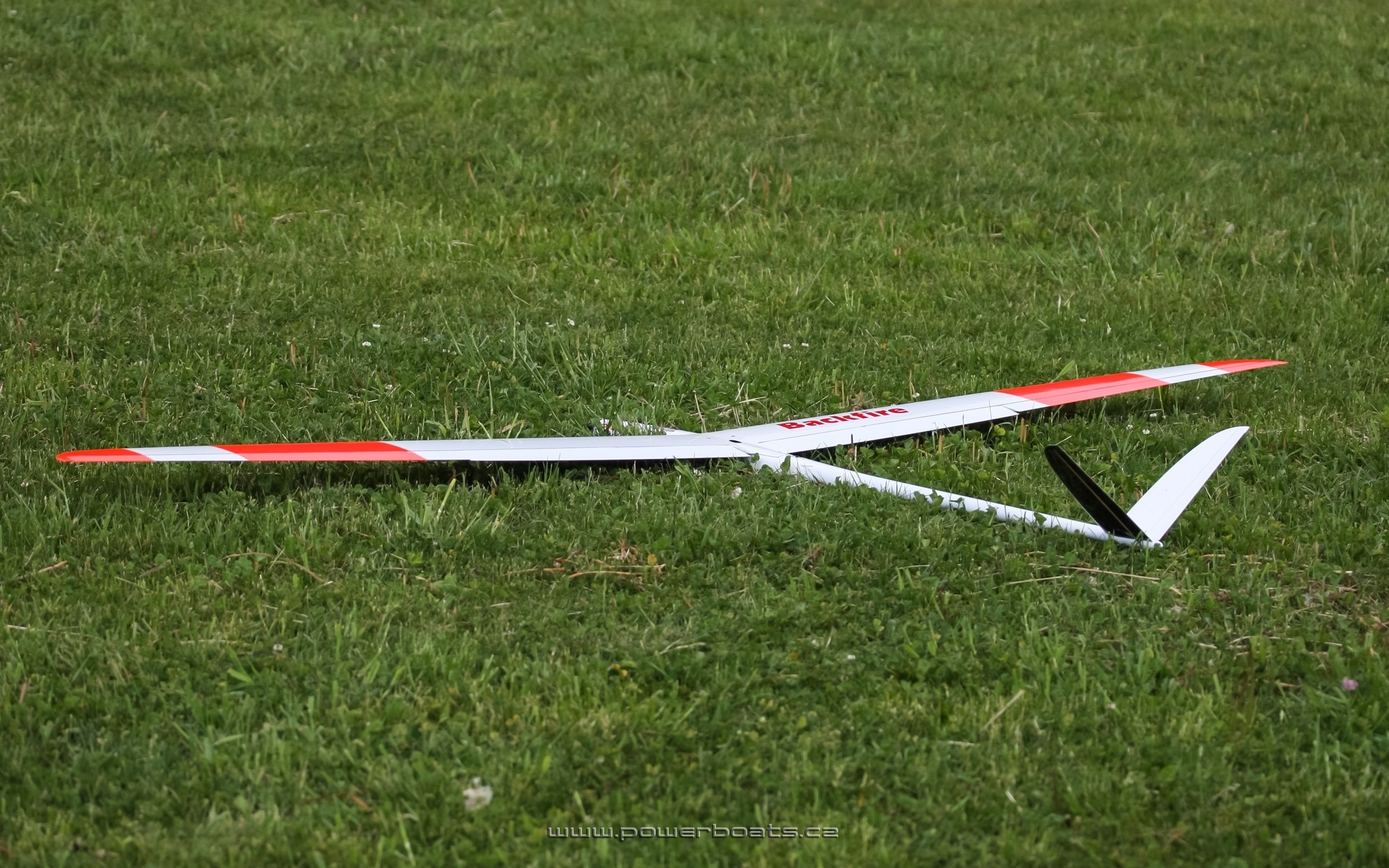

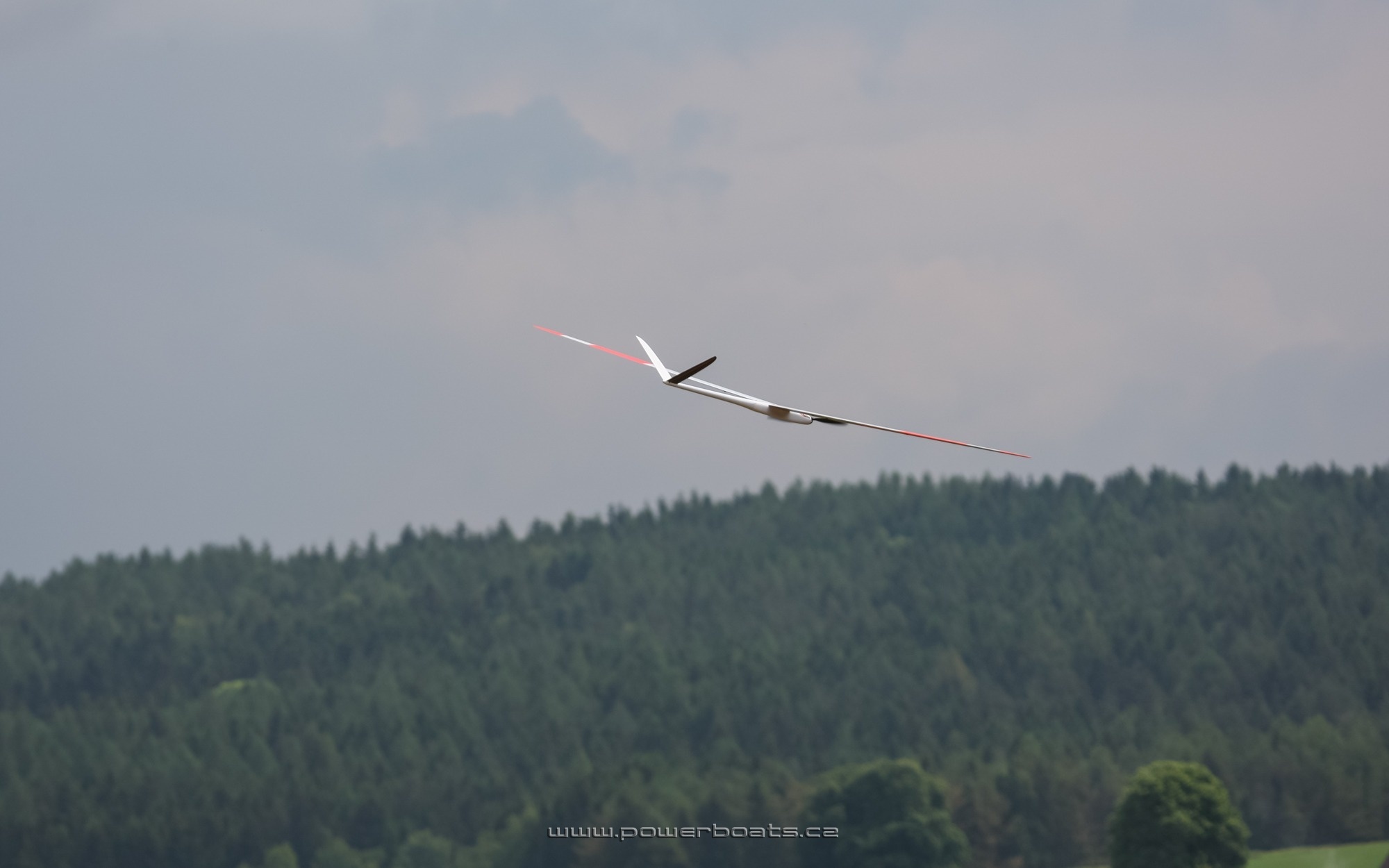

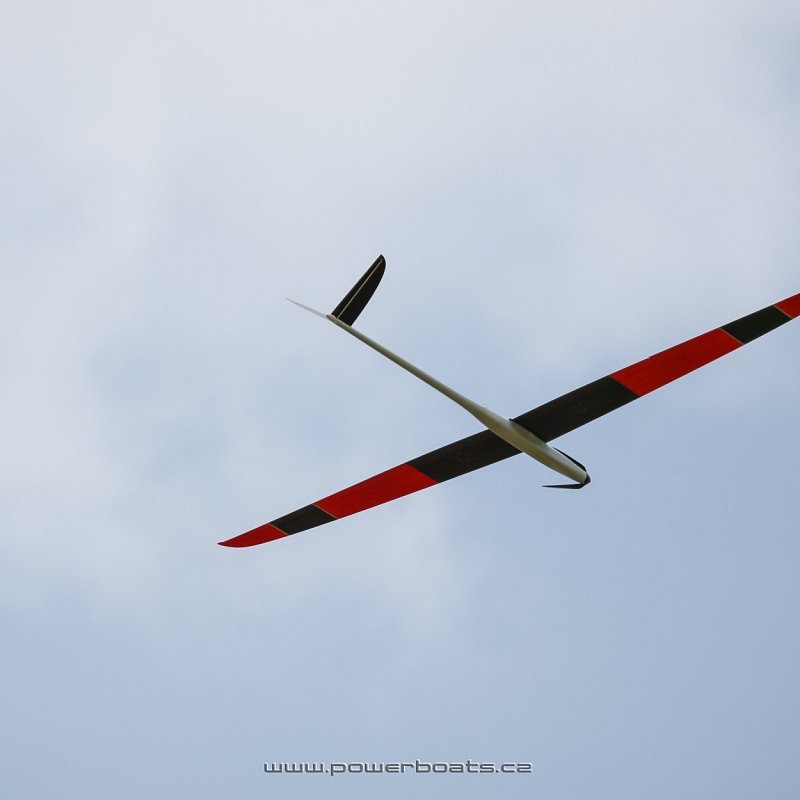

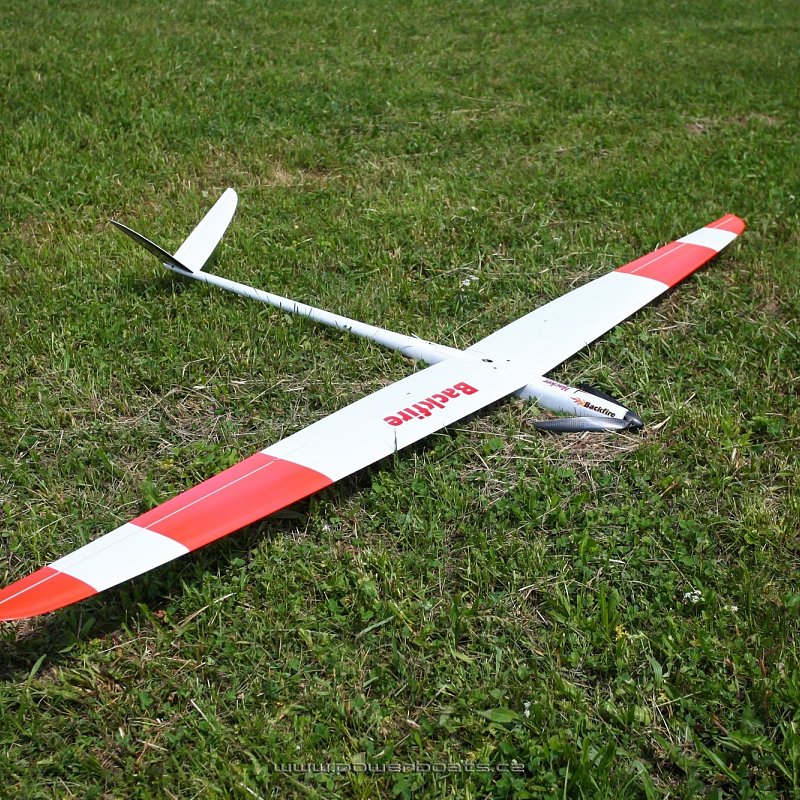

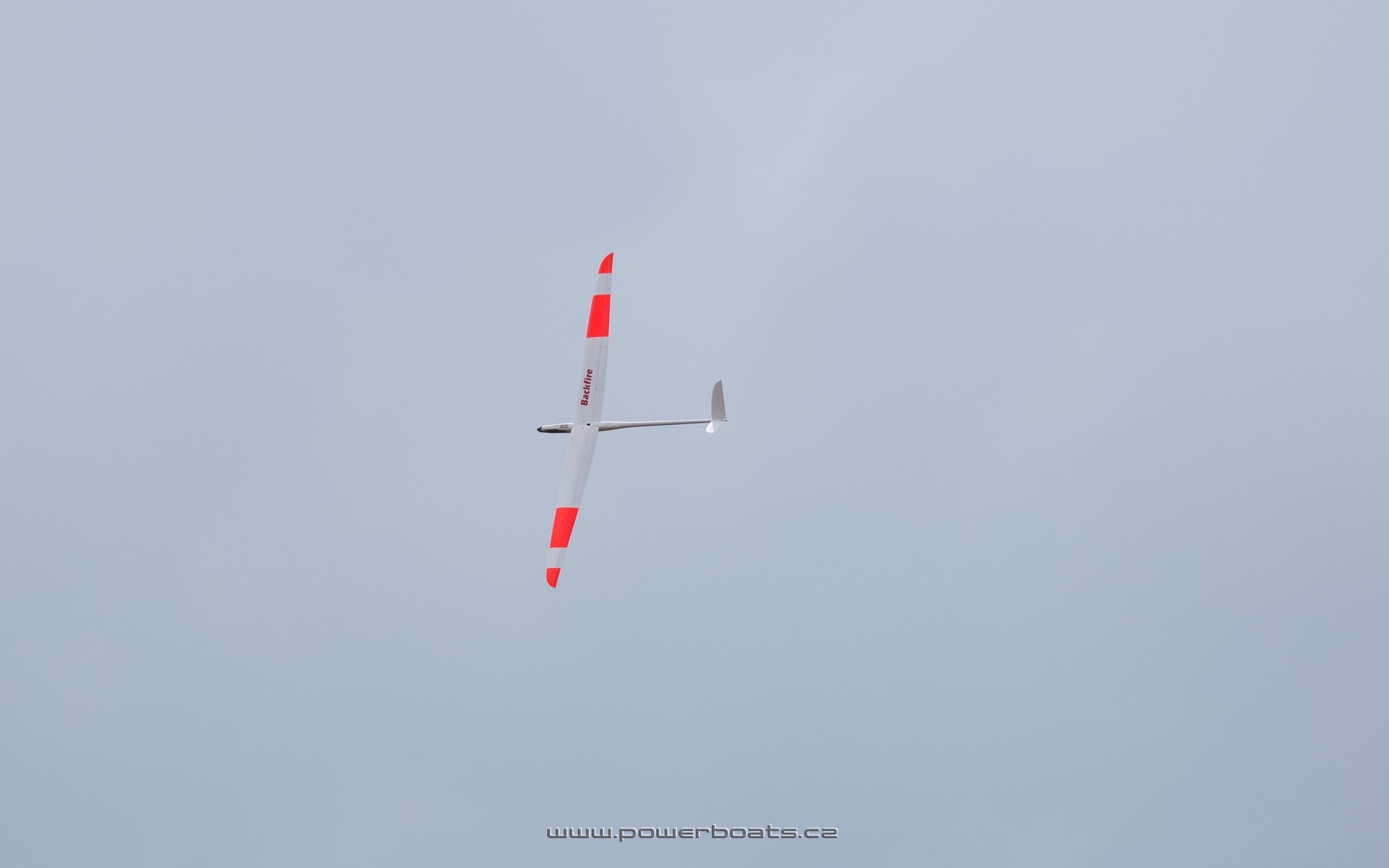

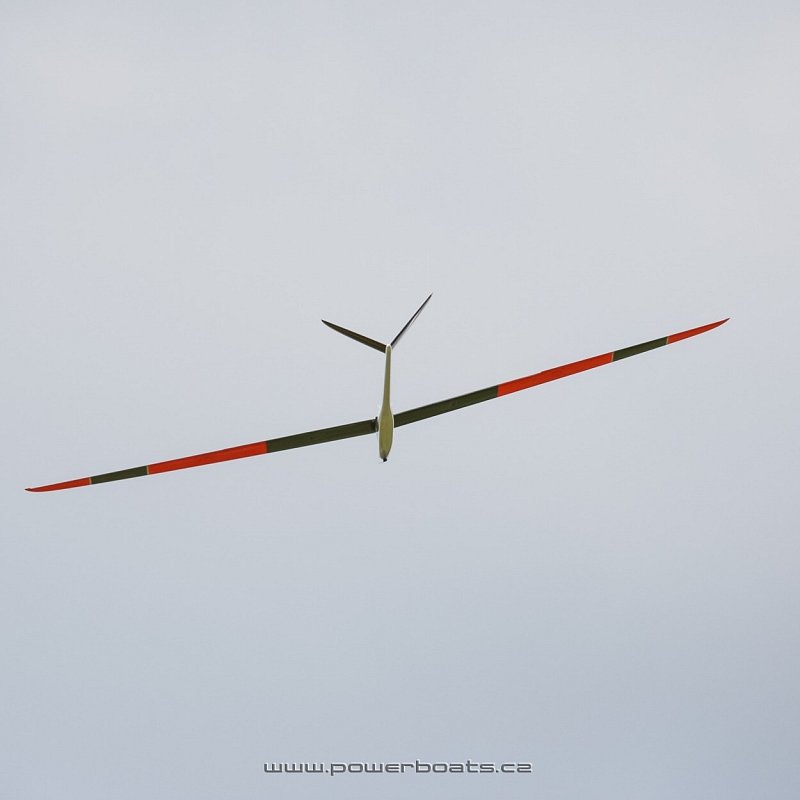

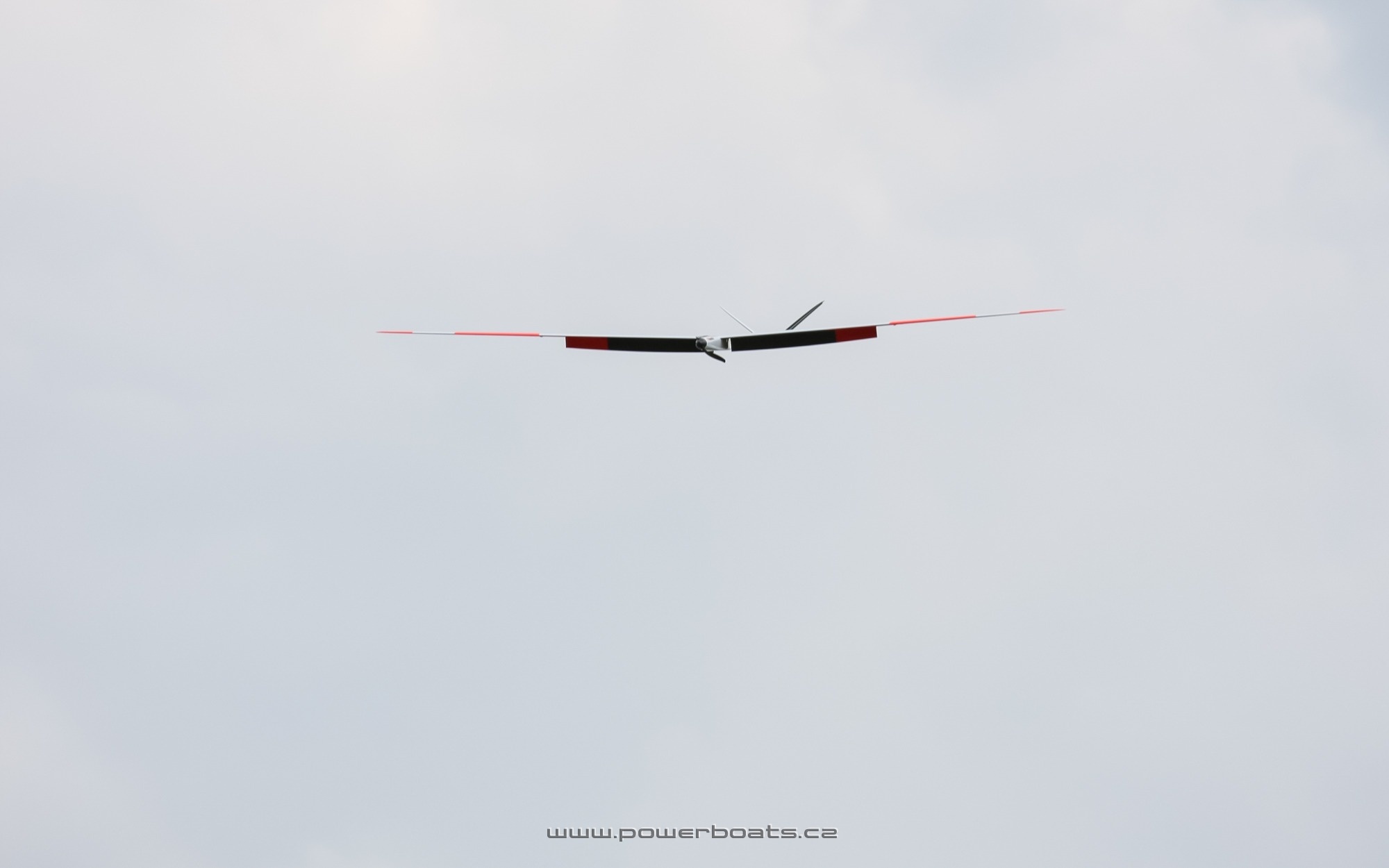

Backfire F5F

Model Backfire F5F

Description

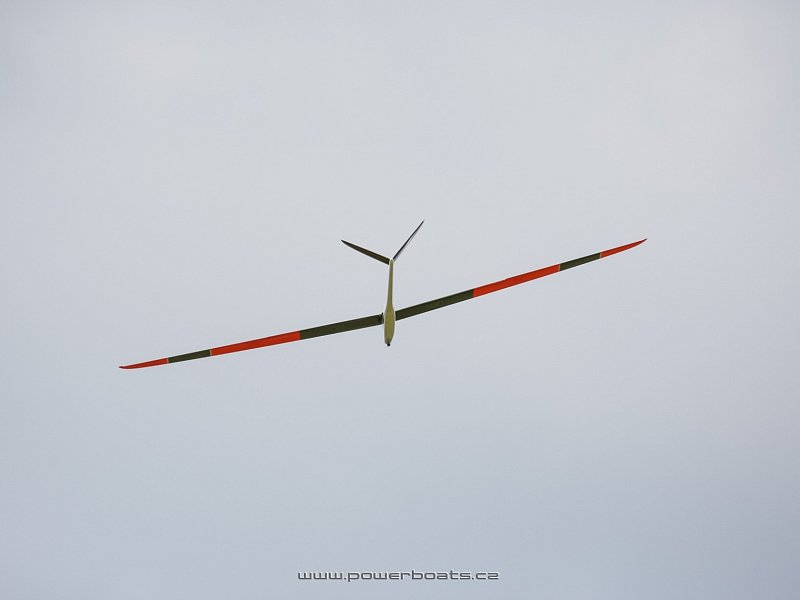

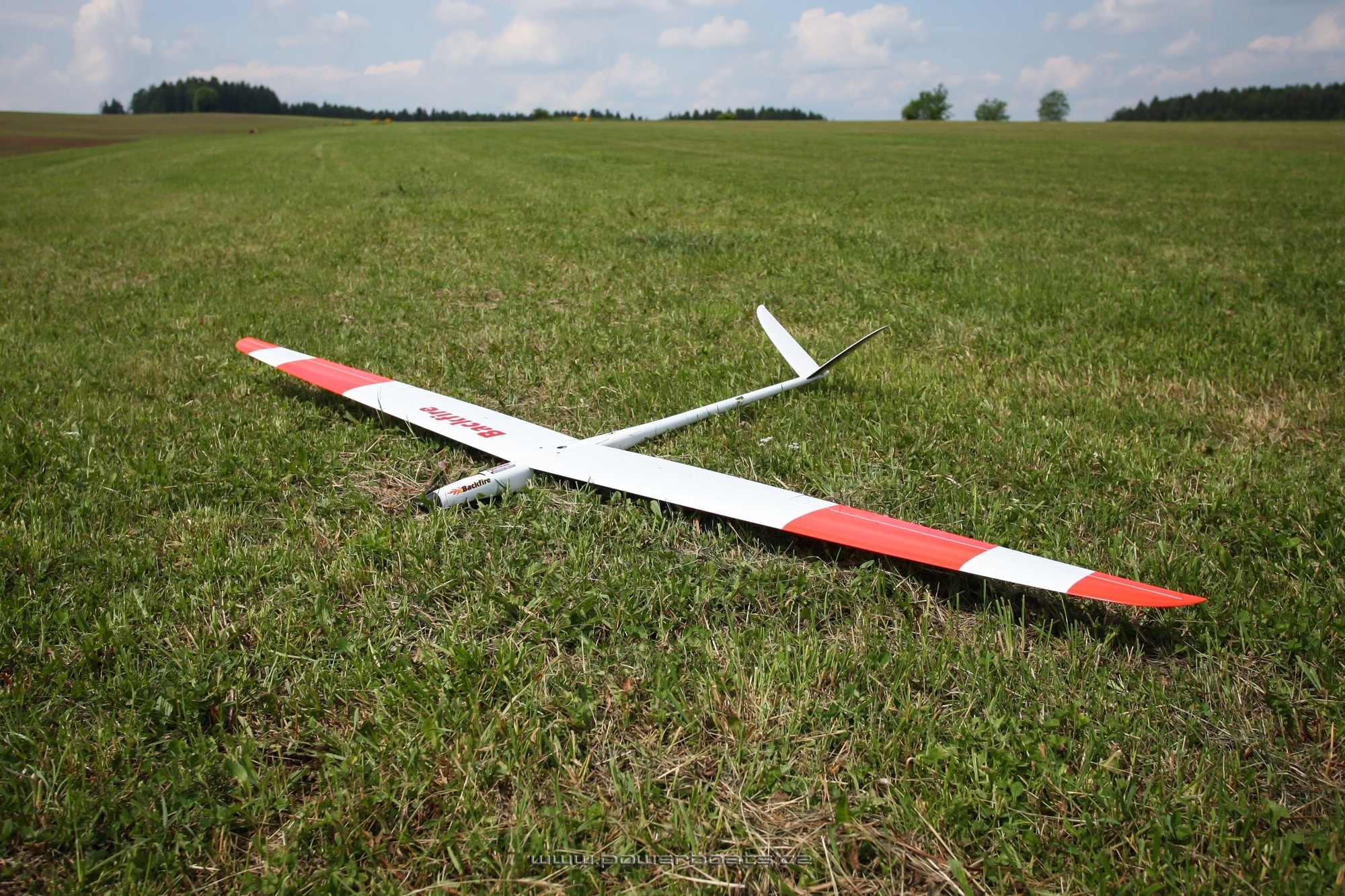

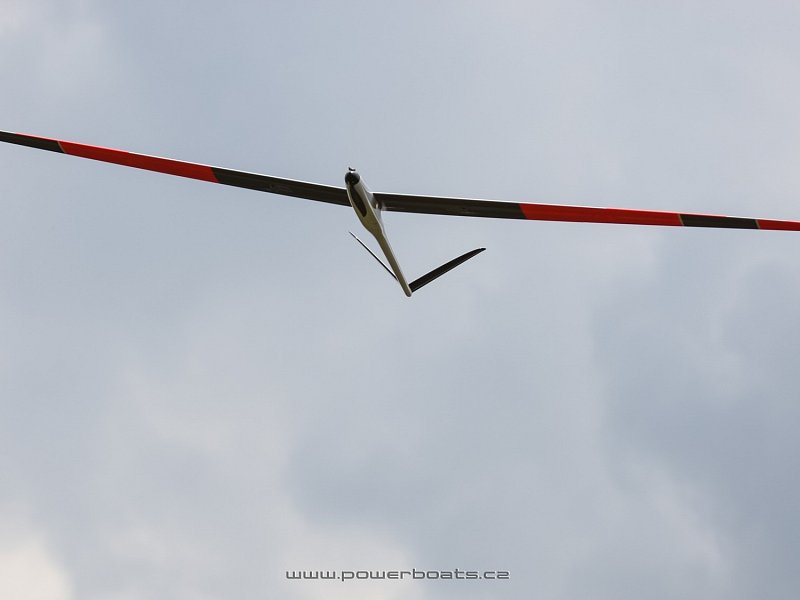

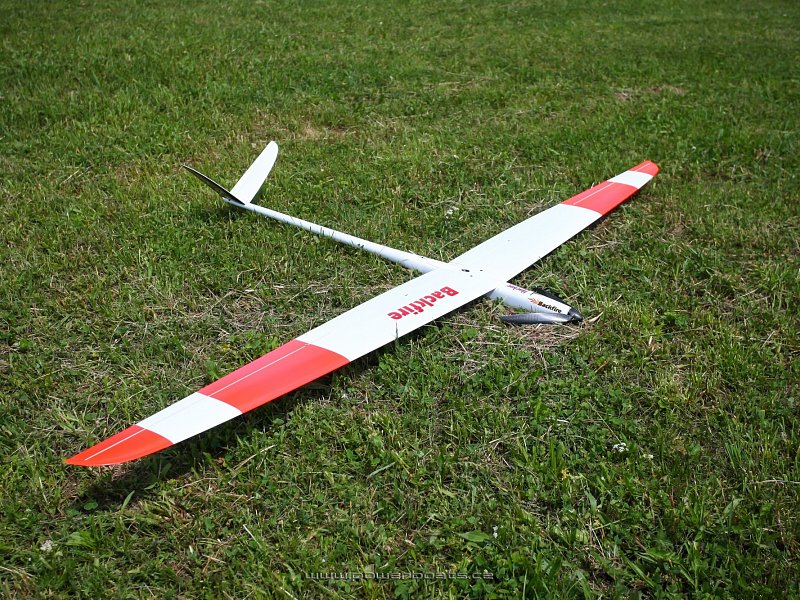

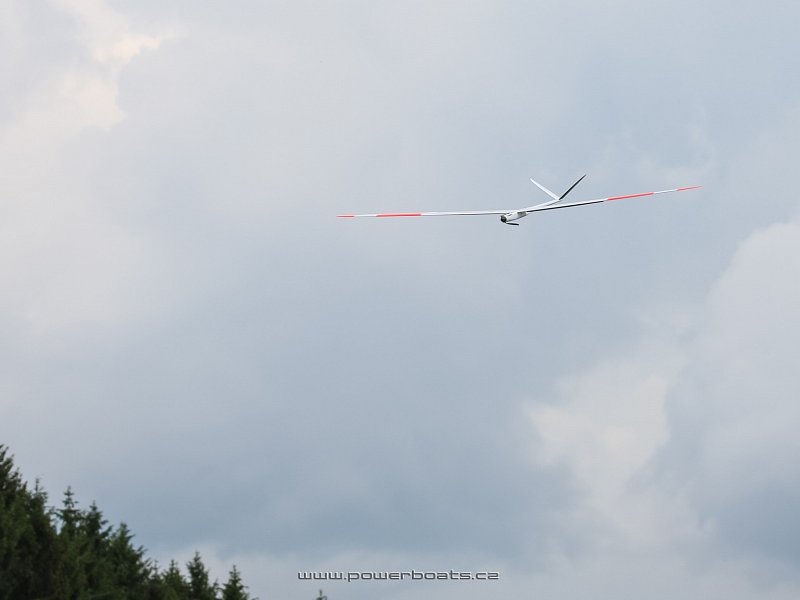

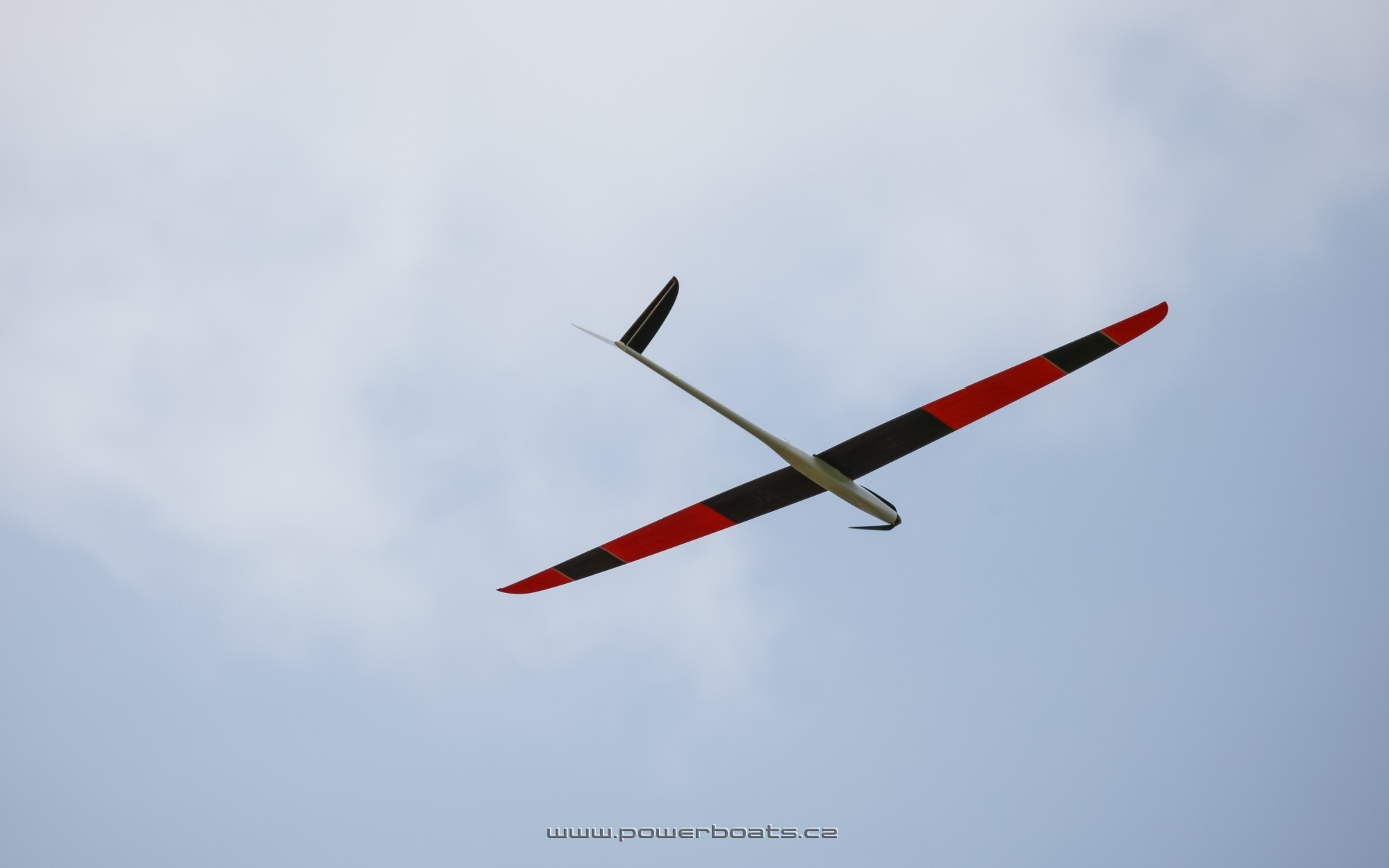

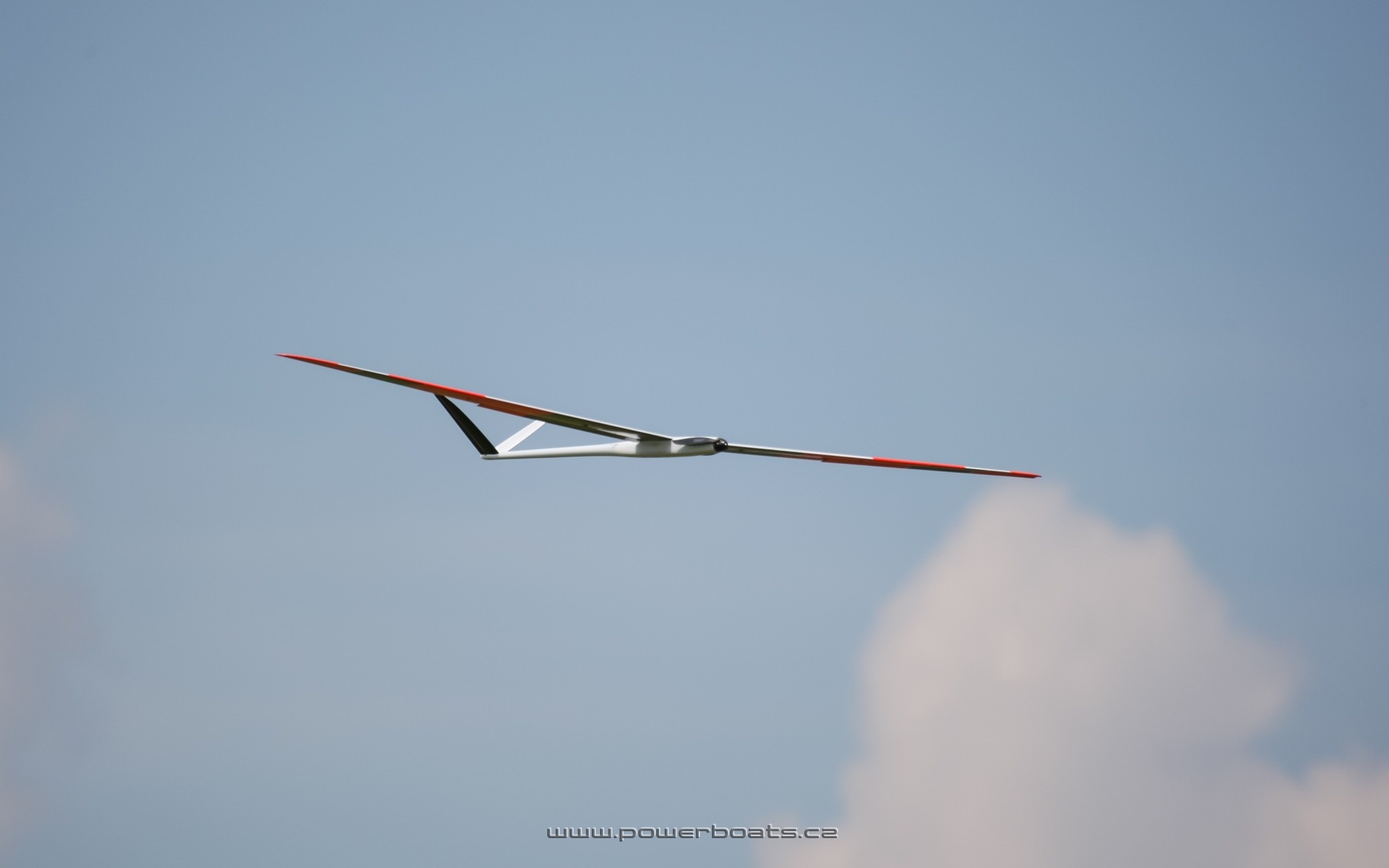

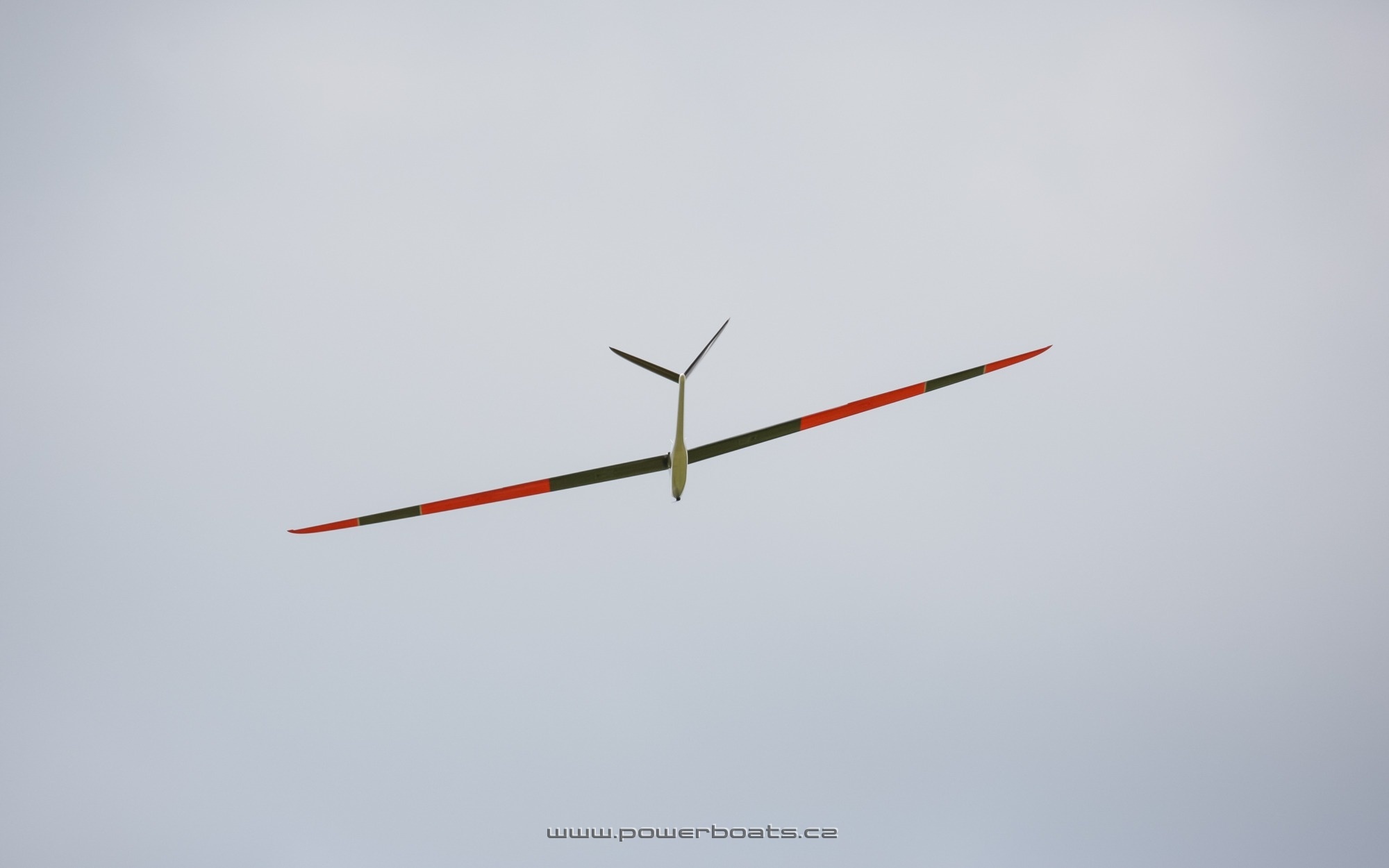

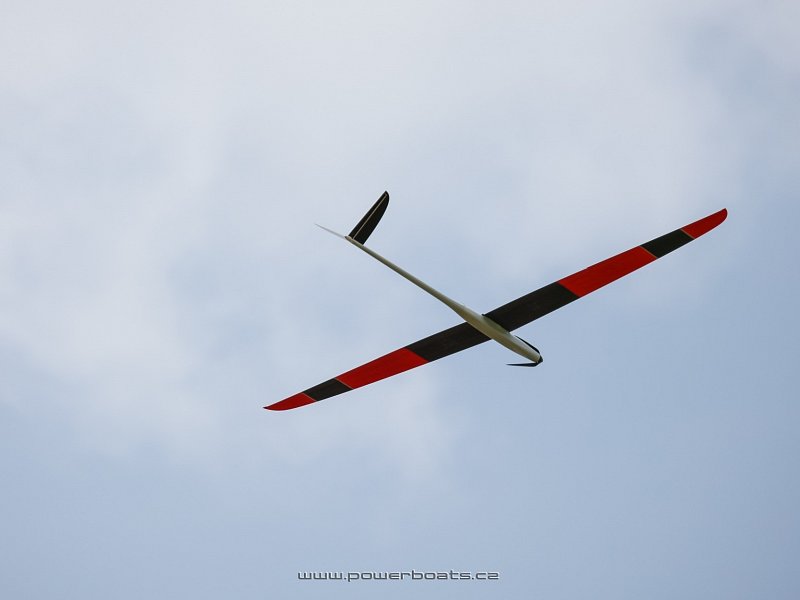

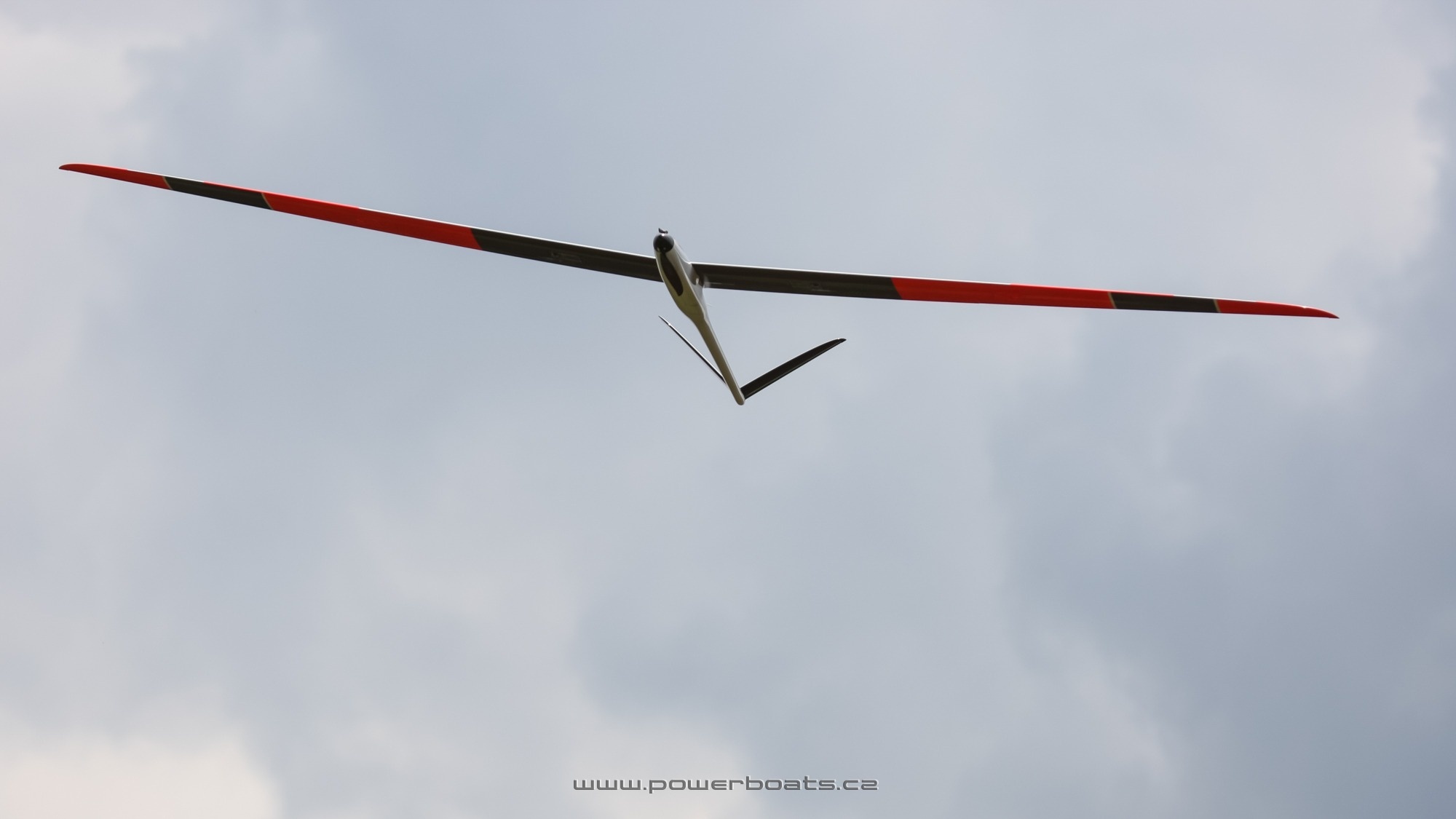

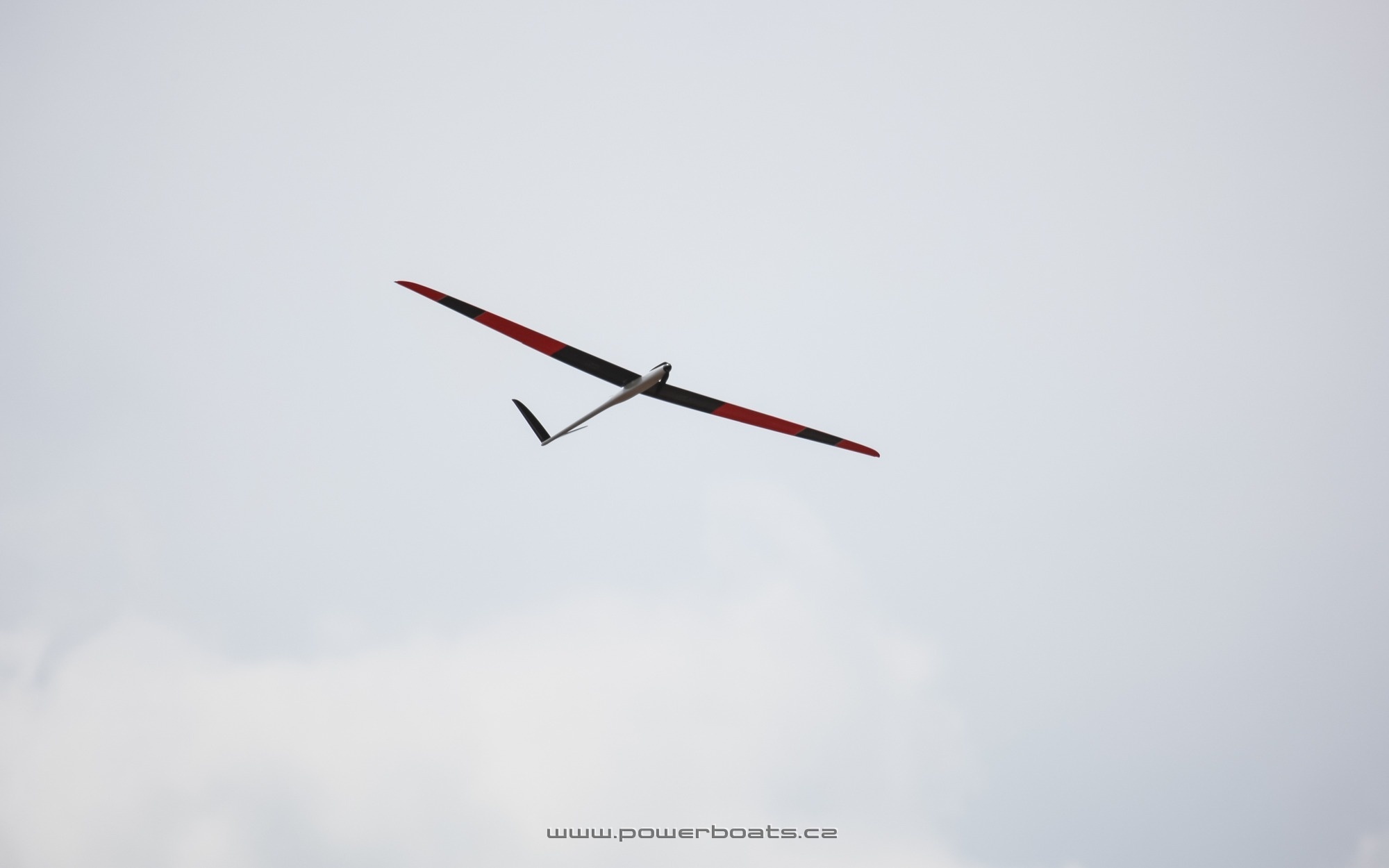

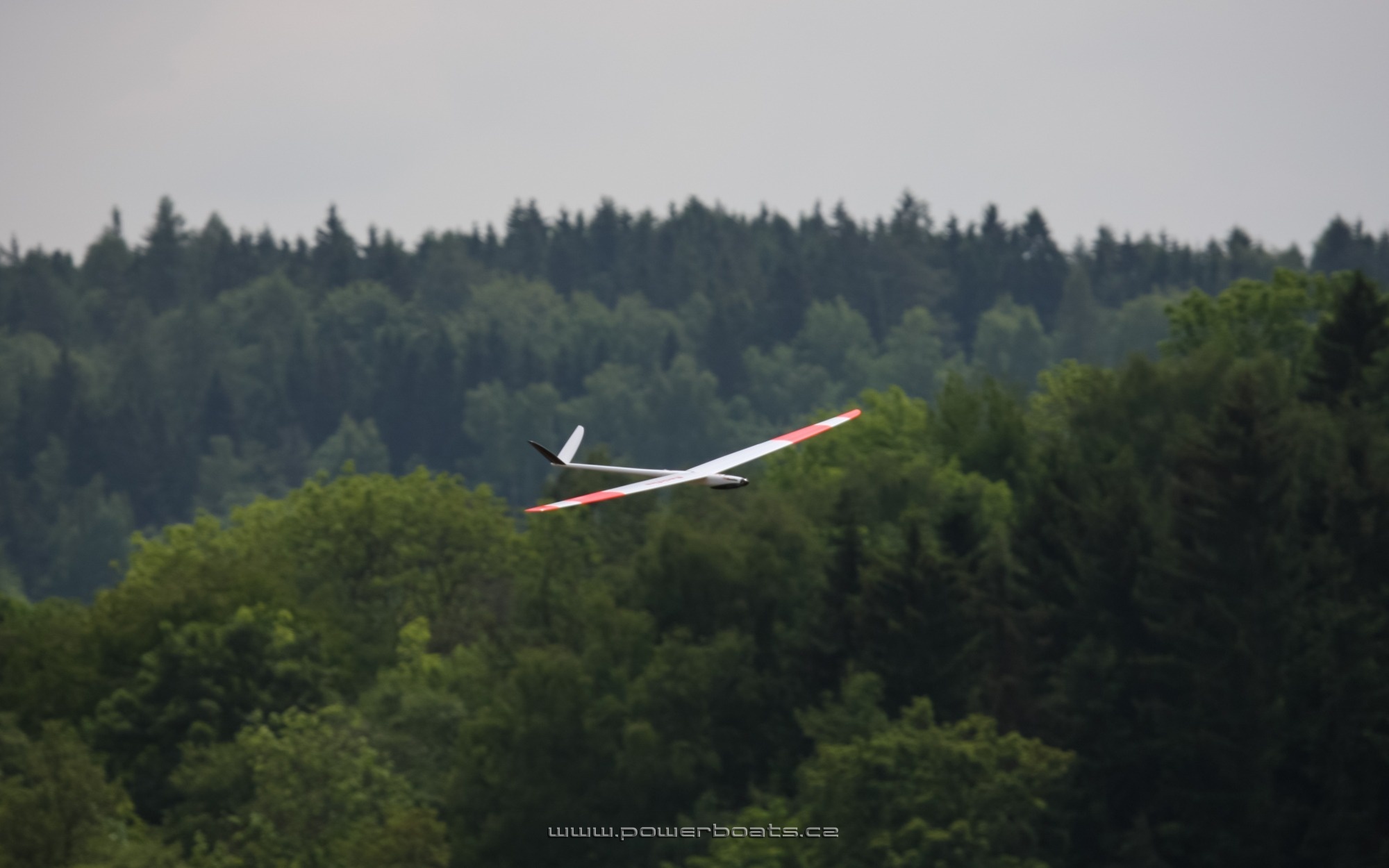

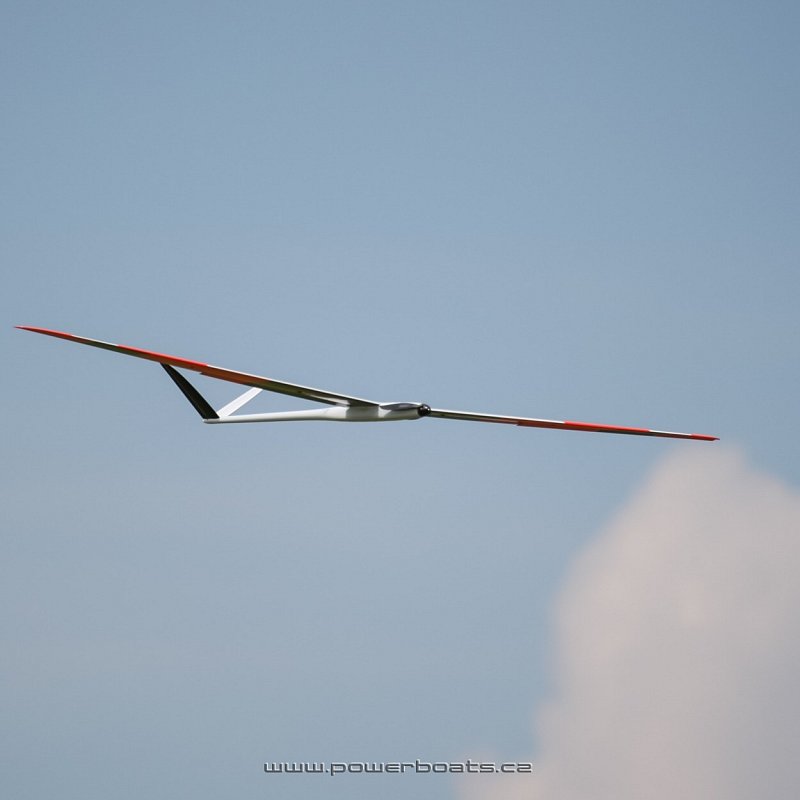

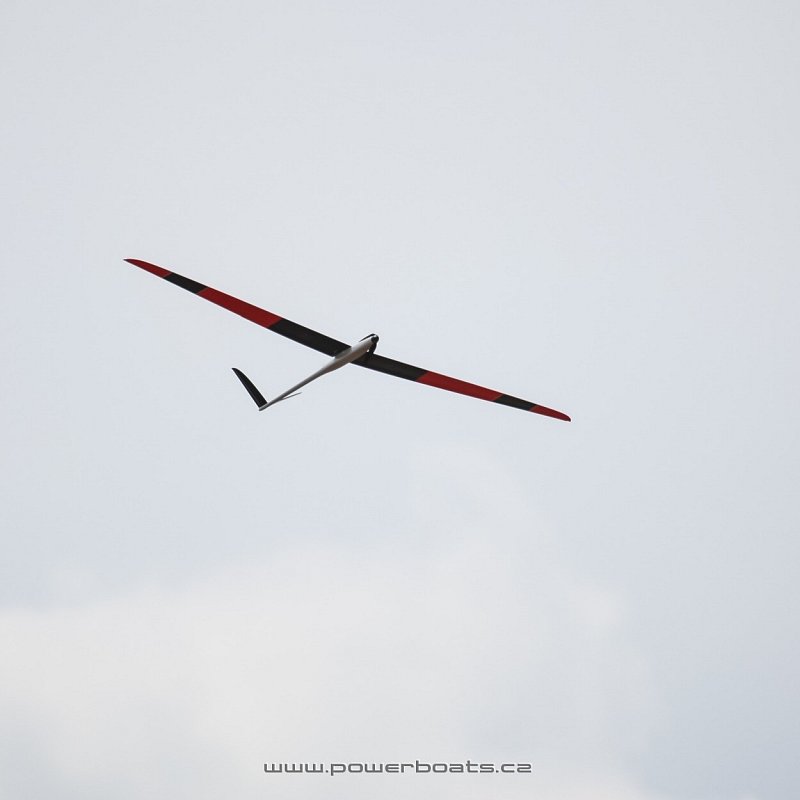

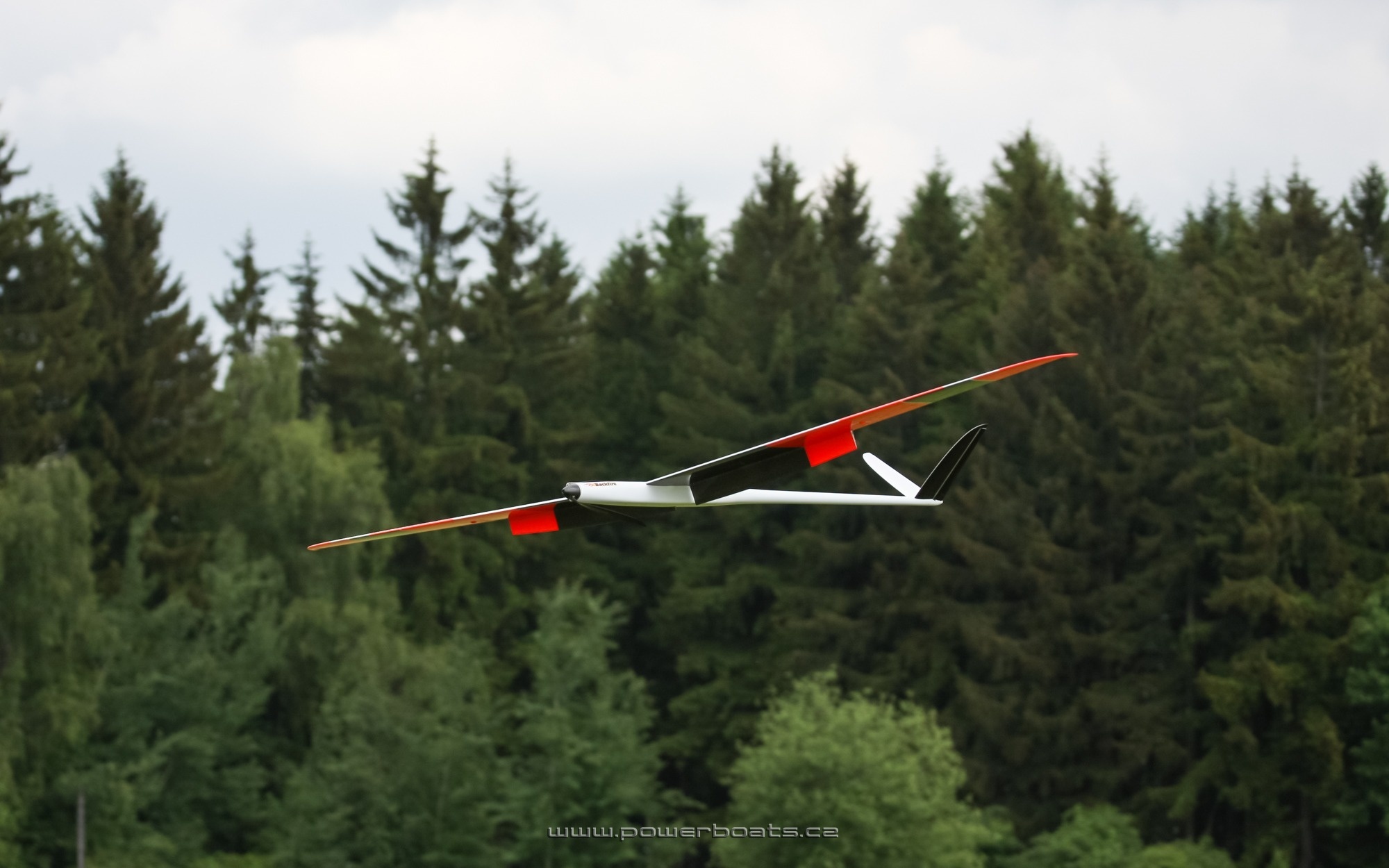

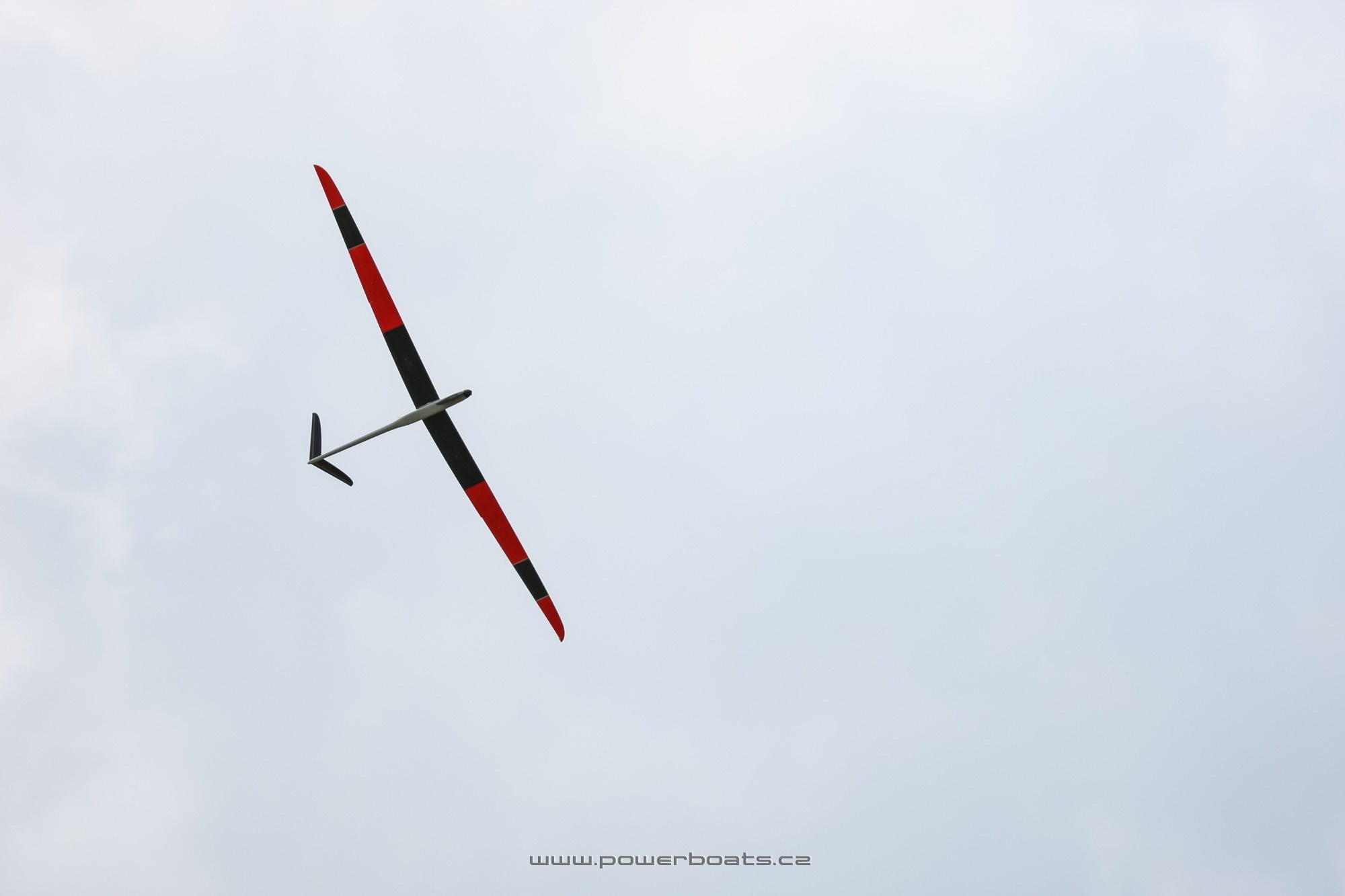

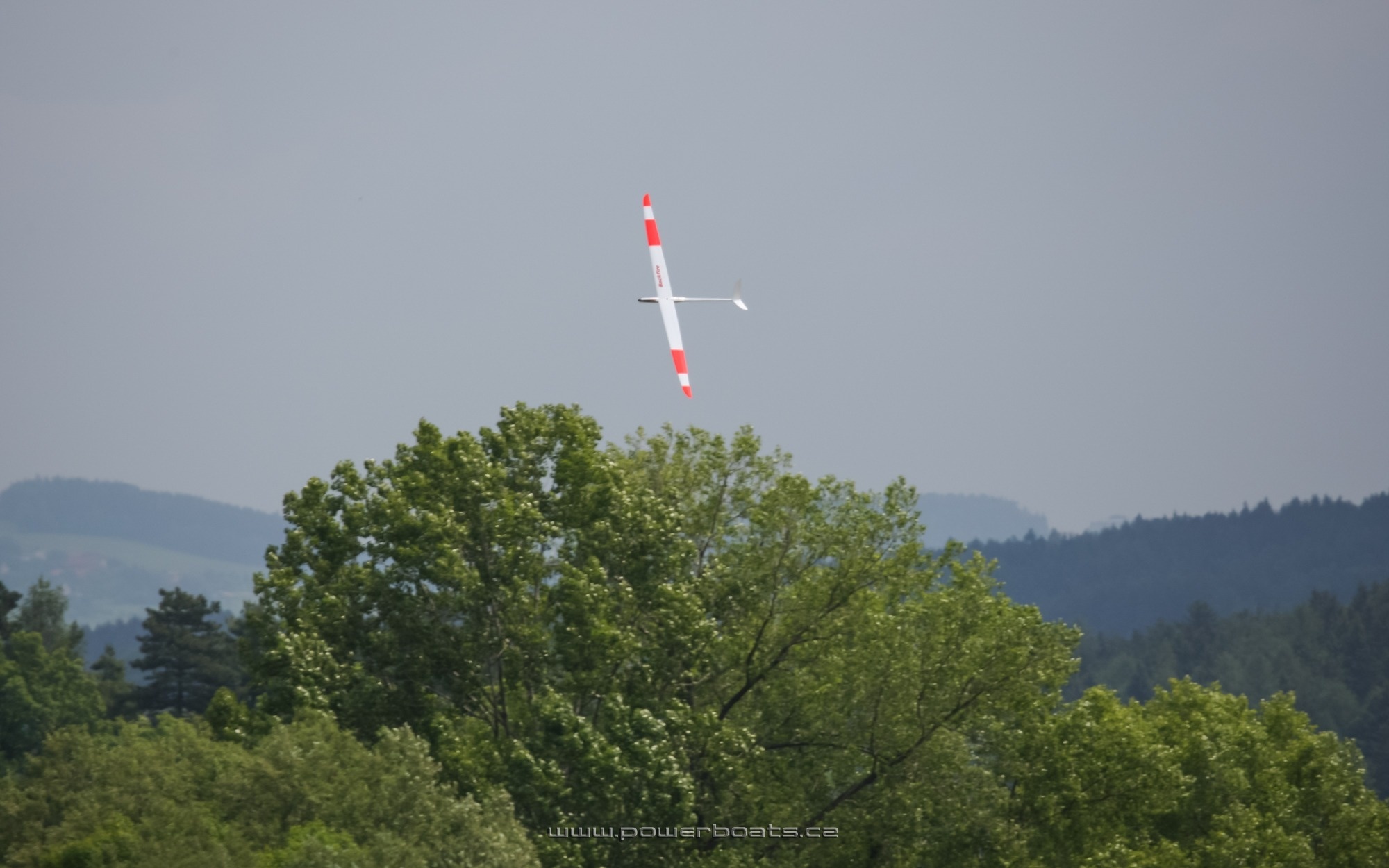

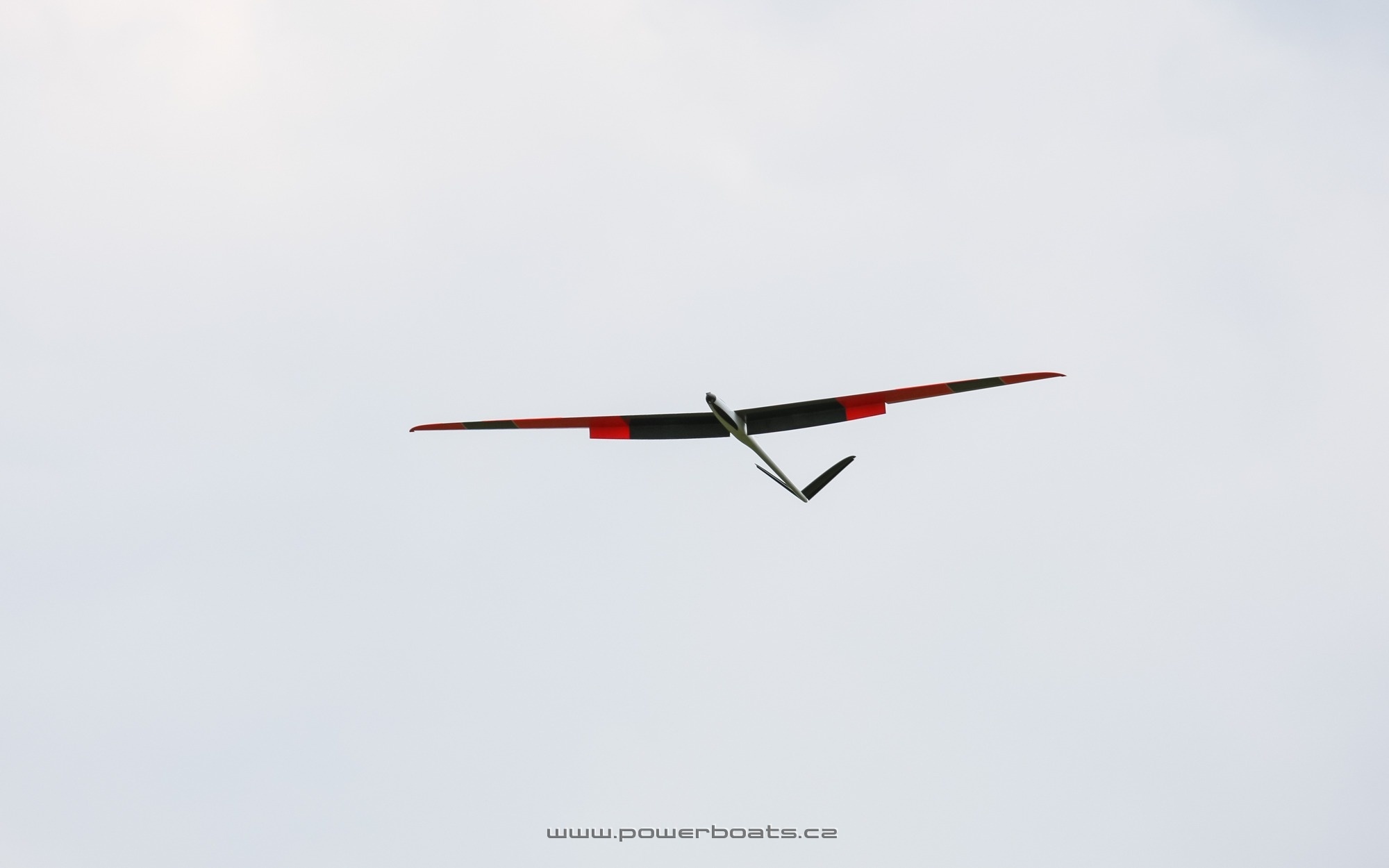

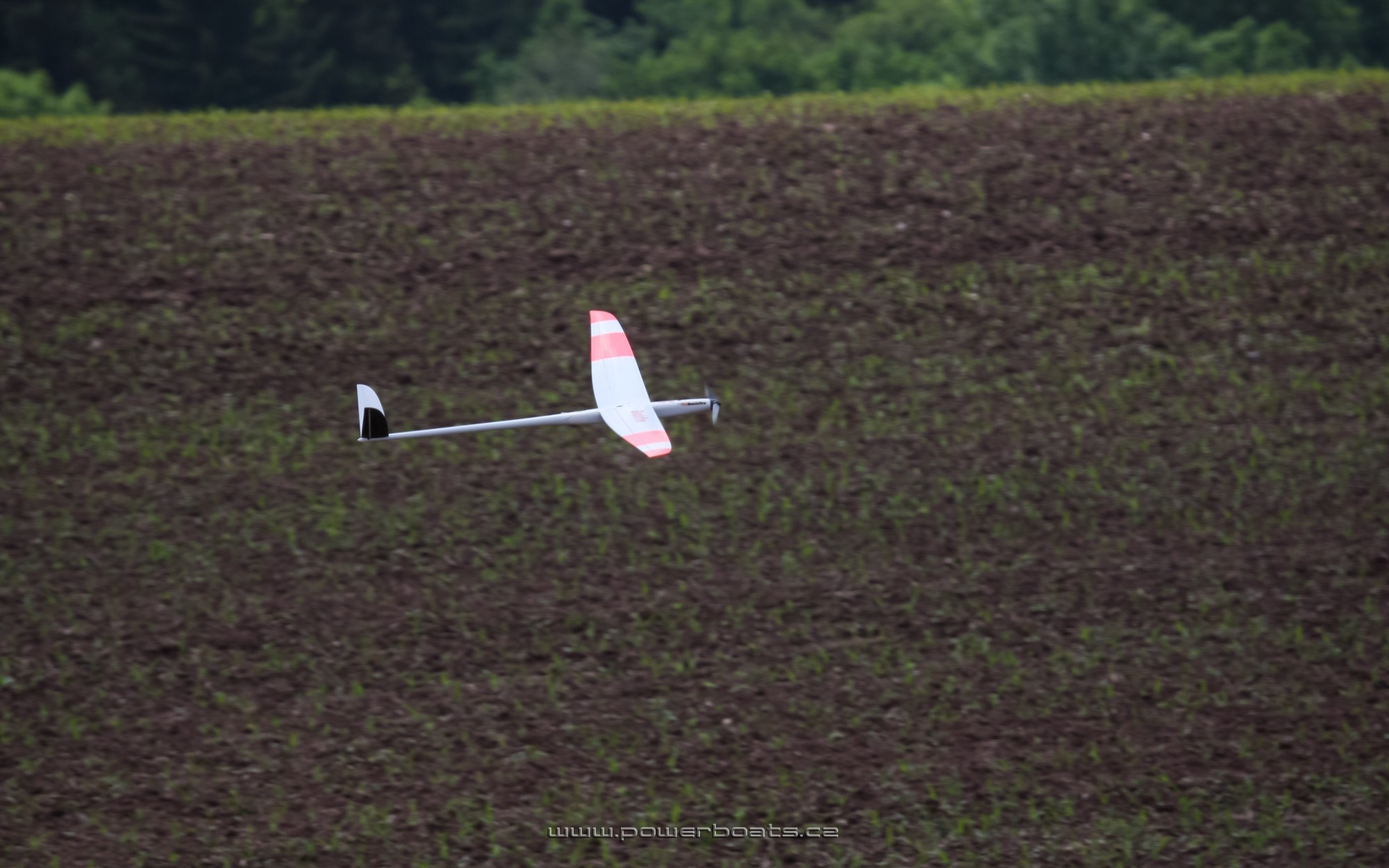

The Backfire F5F packages elegance and style without compromising to performance. Thanks to a Dirk Pflug designed airfoil, the Backfire delivers a broad speed envelope; be it accelerating with latest the 2kw+ F5F power systems or slowly hunting for thermals, the high aspect, 2.4m wing delivers.

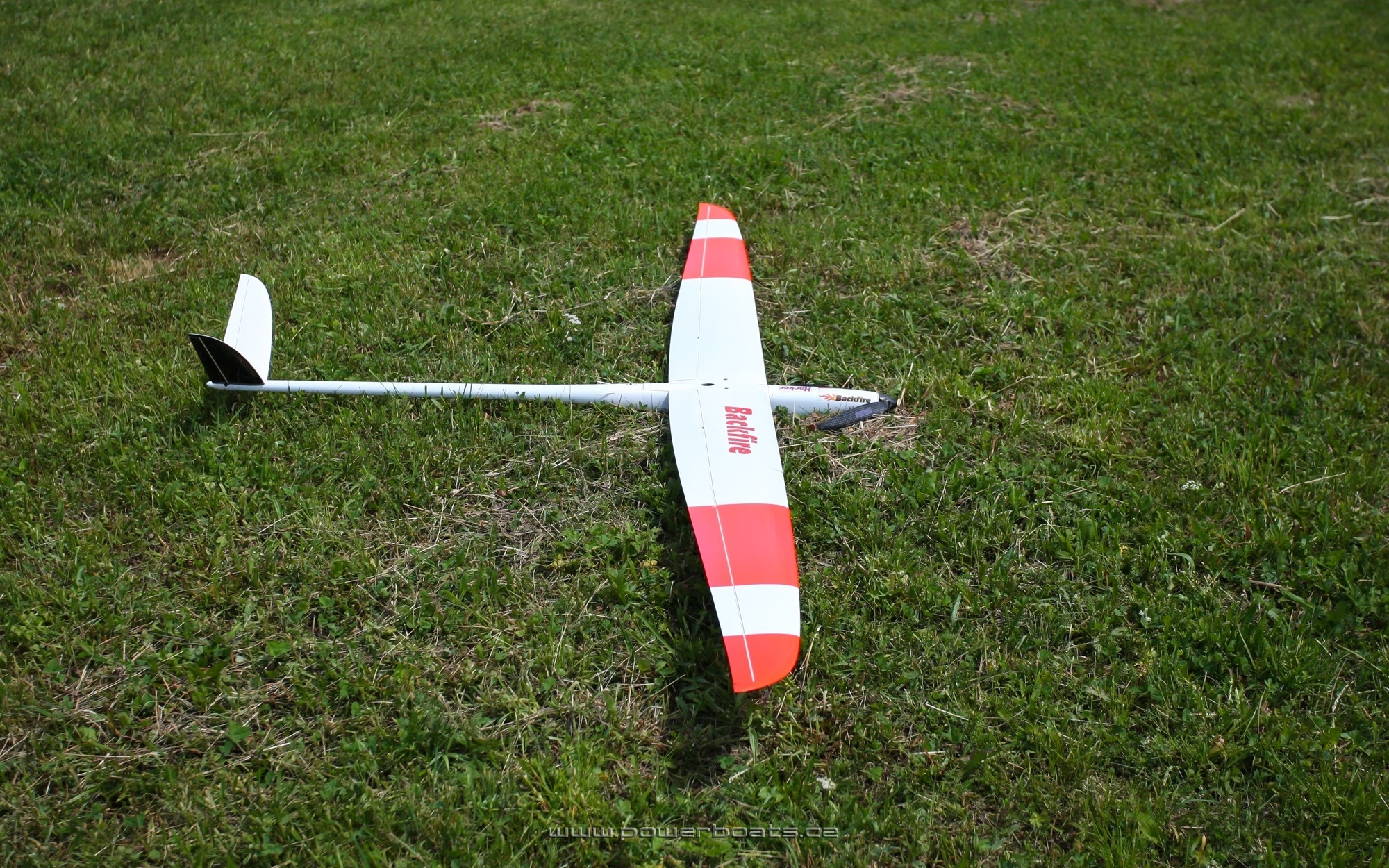

Although designed for competition, the Backfire is also available in a sport version with a three piece wing, and removable v-tails; allowing the plane to easily break down into a space of only 1.2m.

Design
The uniquely swept wing was designed by renown engineer, Dirk Pflug. Based on his experience with F5F planes, he modified his DP 7.81 airfoil at the wing extremities to reduce drag and made slight changes to the overall airfoil to take advantage of the swept trailing edge.

The swept trailing edge is made possible thanks to advancements in CNC milling technology, which has finally allowed us to incorporate unique, three dimensional characteristics to both the wing and fuselage. Two years of testing CNC milled prototypes guarantees that the Backfire delivers exactly as promised.

Construction of the model
The fully molded Backfire is built in a pair of CNC milled, negative molds.

The fuselage is available in  carbon with kevlar in the receiver area to allow for 2.4GHz radios.

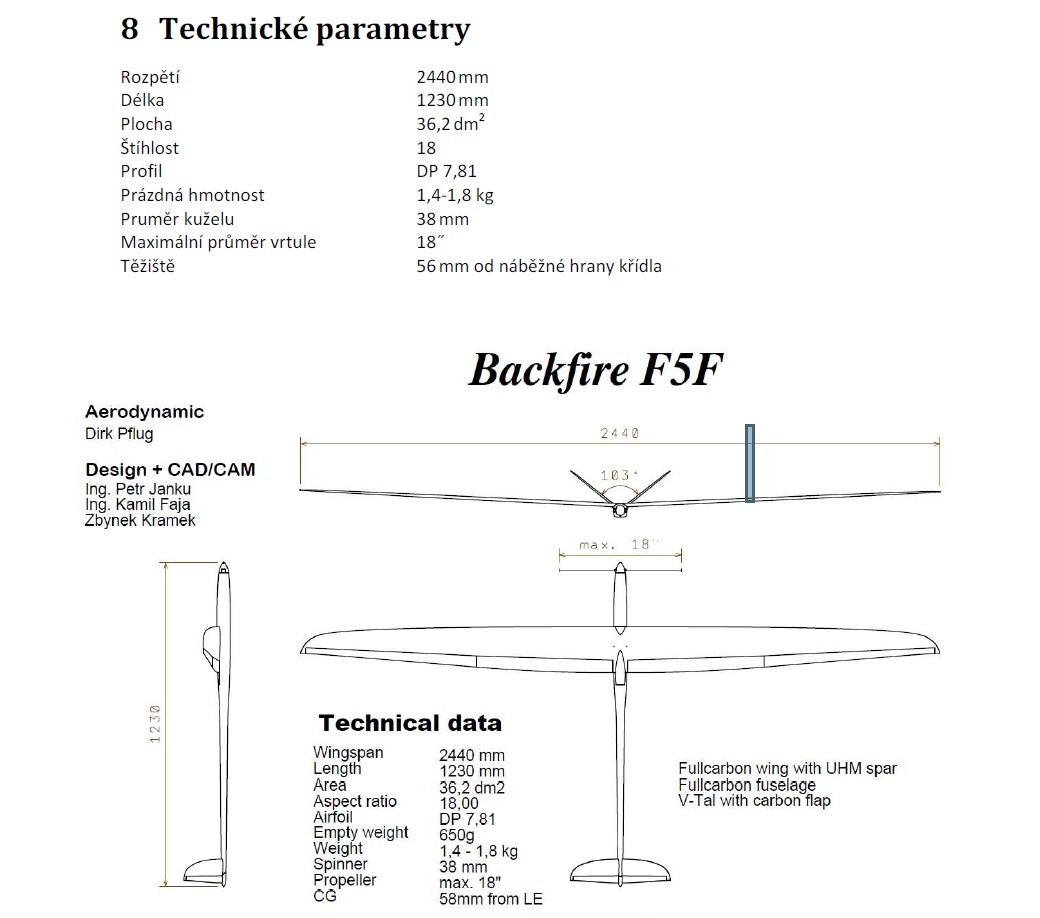

Both the one-piece (competition version) and three-piece (sport-version) wing have UMS spars and 93g/m2 carbon skins applied on a 45˚ degree bias, providing the greatest possible tensional rigidity (no wing twist).

V-tails are new full carbon.

The Backfire is available is lighter or heavier layups upon request to meet your F5B/7 or show-flying needs respectively.
